DA-150EH-AM

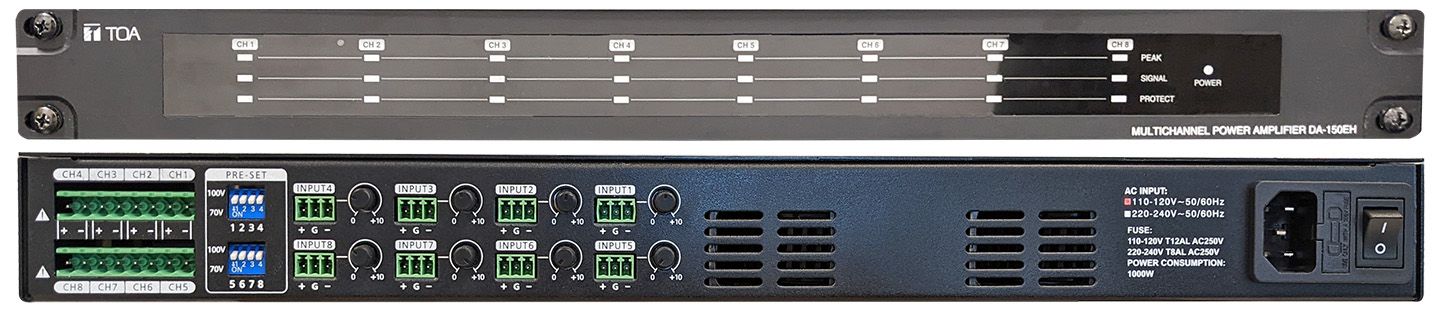

DA-150EH Multichannel Power Amplifier

DA-150EH-AM

TOA's DA-150EH-AM Multichannel Power Amplifier features high power handling capabilities and commercial-grade durability. It has a rated output of 150 W x 8 channels (100/70V line output). It covers larger scale sound system applications where background/foreground music distributions and/or voice announcements are required in multi-zone. It can be mounted in an EIA standard equipment rack.





QTY: Add to Request for quote Request for quote
" target="_blank">

Specifications:

Power Source 110-120 V AC, 50/60 Hz
Amplification System Digital class D
Power Consumption 1000 W
Input 8 circuits, 0 dBV (1 V) (input level control in maximum position),
20 kΩ, electronically-balanced, removable terminal block (3 pins)
Rated Output 8 channels: 150 W x 8 (66.7 Ω (100 V)/33 Ω (70 V))
100/70 V DIP switch x 8, removable terminal block (2 pins)
Frequency Response 50 - 20,000 Hz (±3 dB)
Total Harmonic Distortion < 0.1%
S/N Ratio > 95 dB (A-weighted)
Crosstalk > 70 dB (A-weighted)
Protection Circuit Short circuit, open circuit, thermal, excessive input, ultrasonic and RF
Indicators Signal (green) x 8, Peak (red) x 8, Protect (red) x 8, Power (green) x 1
Cooling Forced air cooling
 Operating Temperature  0°C to +40°C (32 °F to 104 °F)
 Finish Panel: aluminum, black, alumite
Case: plated steel sheet
Dimensions 483 (W) x 44 (H) x 360 (D) mm (19" x 1.7" x 14.2")
Weight 7.3 kg (16.09 lbs)
Accessory Power cord (2 m) ...1, Removable terminal plug (3 pins) ...8,
Removable terminal plug (2 pins) ...8
