M-800DT-AM

M-800DT-AM Dante module for M-8080D-AM

M-800DT-AM

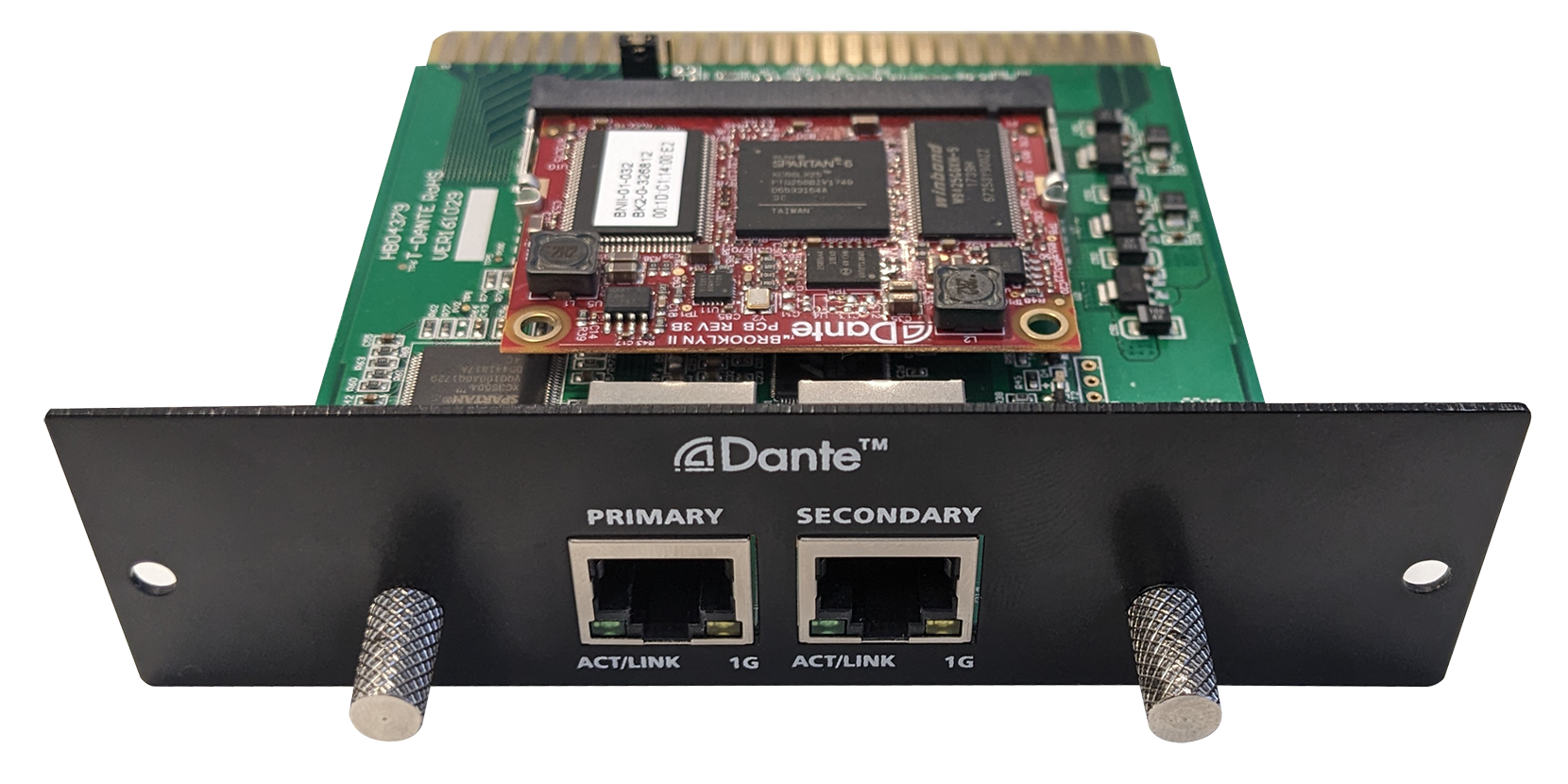

The M-800DT Dante module provides an easy-to use audio over ethernet connection between up to 16 M-8080D Matrix Mixer Systems. It adds 8 Dante Inputs and Outputs channels to expand the possibilities of the M-8080D system with the Dante ecosystem.



Update System to Enable Dante

 Firmware Update Instructions

 MUST RUN FIRST - M-8080D Firmware Update Tool

  M-8080D Controller Software Ver. 6.0  (Applicable only to 6.0)

  M-8080D Controller Software Ver. 5.3 and below

  M-800DT Dante Module Firmware Update

QTY: Add to Request for quote Request for quote

Specifications:

Power source 5 V DC (Powered by M-8080D)
Audio Codec TDM, I2S
Digital audio i/F Dante In: 8 channels, Out: 8 channels
Digital audio l/F SPI Master and Slave
Network I/F RGMII/MII
Operating temperature 0 °C to +40 °C (32 °F to 104 °F)
Dimensions 122.2 W x 33.5 H x 119.5 D mm (4.81” x 1.32” x 4.70” )
Finish Steel plate, surface-treated, paint, black
Weight 0.118 Kg ( 0.26 lbs)
