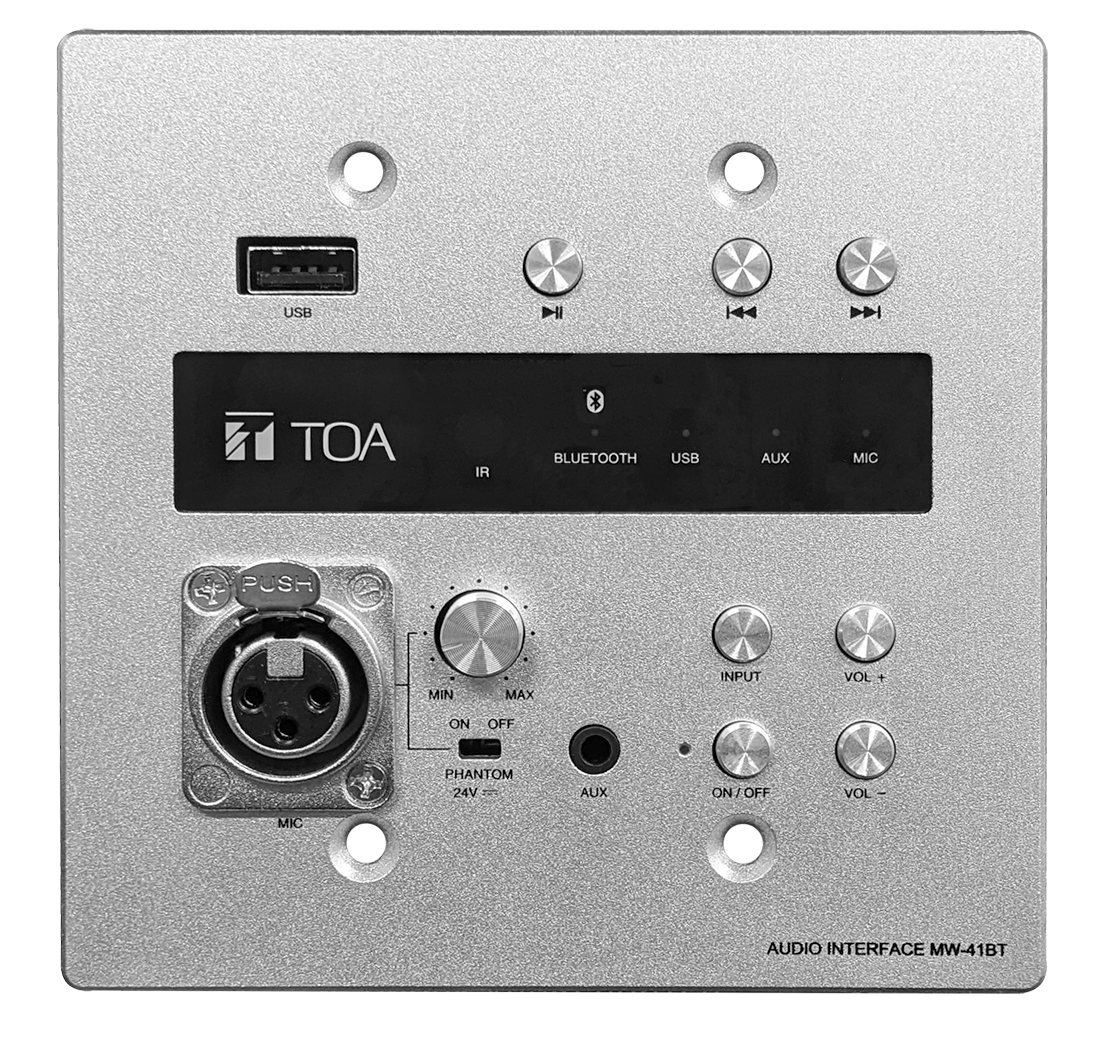

MW-41BT - Audio Interface with USB and Bluetooth

MW-41BT

MW-41BT is TOA’s second generation of audio input panels. It is equipped with Microphone, Aux (3.5mm), USB and Bluetooth inputs, and one Mono balanced output. The in-wall design and modern appearance make it ideal for saving space and integration to various facilities.

NOTE: Shielded Twisted Pair (STP) CAT5e or CAT6 is required when connecting the device for best performance.

Optional Lockbox
Surface Mount
Flush Mount

 Landing Page click here





icon *Firmware Update, See Readme File

icon Device Renaming Tool


QTY: Add to Request for quote Request for quote

Specifications:

Power Source  100-240V AC 50/60Hz
Power Consumption 3W
Audio Input  MIC input: -60 dBv, 2.2 kΩ, electronic balanced, femail XLR Connector
AUD input: -10 dBv, 10 kΩ, unbalanced, stereo 3.5mm (1/8”) mini-jack
USB input: Audio formats: MP3, WAV
Format: FAT16, FAT32, Max. 32GB
Bluetooth input : Ver. 5.0, Max. 10m
Audio Output  0 dBv, 10 kΩ, electronic balanced, RJ45 connector
Frequency Response  20 - 20,000 Hz, ±3 dB
Total Harmonic Distortion  < 0.1%
S/N Ratio  > 90dB (A weighted)
Phantom Power +24 VDC, switchable, MIC input
Indicators Power (Blue) x1, MIC (Blue) x1, AUX (Blue) x1, USB (Blue) x1, Bluetooth (Blue) x1
Operating Temperature 0°C to +40°C (32°F to 104°F)
Operating Humidity 90% RH or less (no condensation)
Finish Panel: Aluminum, Sandblasting, Silver
Decorative Sheet: Acrylic, Black
Dimensions 120 (W) x 120 (H) x 40.2 (D) mm (4.72” x 4.72” x 1.58”)
Weight 0.2 kg (0.44lbs)
Accessory AC Power adaptor...1, Remote control...1, Box mounting screw (6-32UNC...4
RJ45 Conversion socket...1
Options

Lockboxes - BX-41S Surface Mount, BX-41F Flush Mount
2 Gang boxes, YC-823, YC-822, YC-302, YC-531HSW

*To prevent electrostatic buildup/discharge, TOA recommends that the MW-41BT be grounded during installation.*
