IR-801AF US DQ

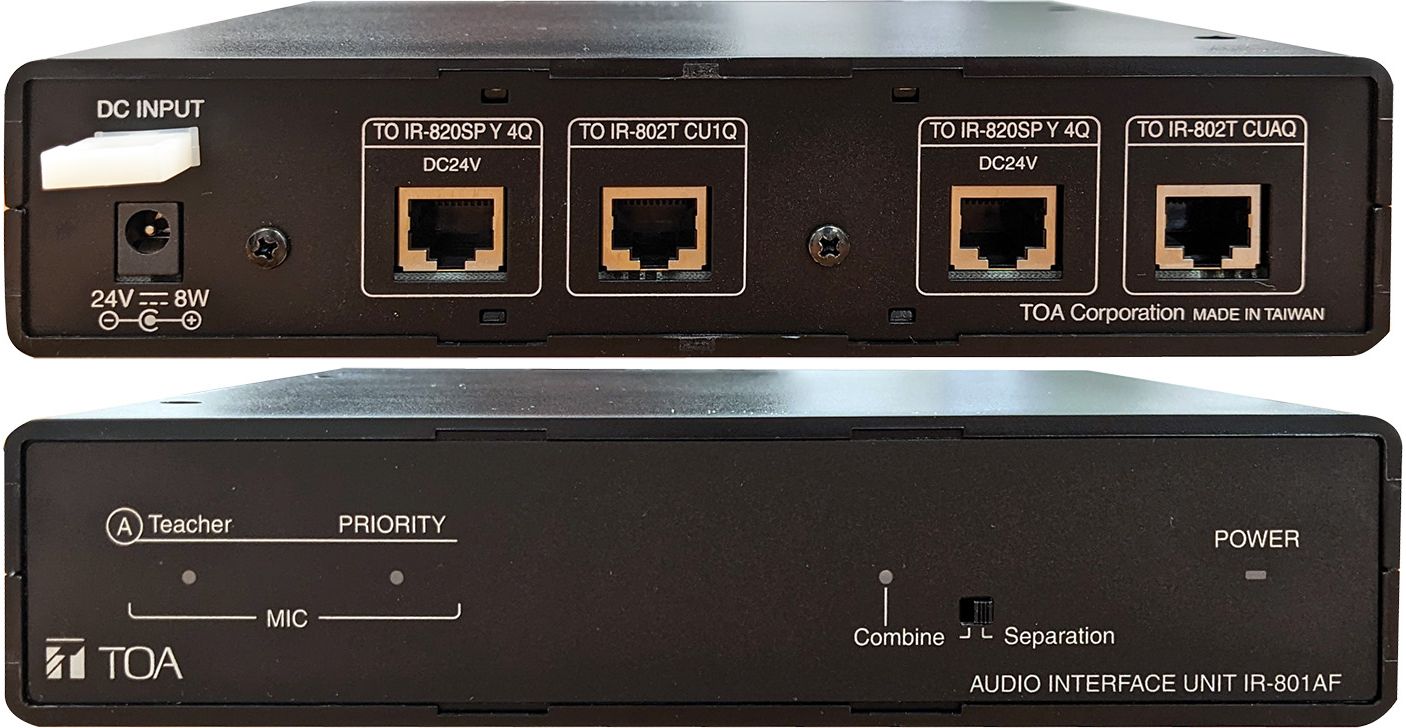

IR-801AF US DQD00 Audio Interface Unit

IR-801AF US DQ

The IR-801AF US DQ version is an Audio Interface Unit designed to distribute the tuner signal for use in a school classroom. Used to combine and separate systems in either one or two classrooms, where multiple tuners, speakers and/ormicrophones are being used. Distributes signals through channels A/B and 1/2.

IR Classroom Brochure IR Classroom Brochure  IR Classroom A&E Spec

QTY: Add to Request for quote Request for quote

Specifications:

* 0 dB = 1 V

Power Source 24 V DC (Supplied from IR-802T or optional AC adapter)
Infrared Frequency Channel Channel A: 3.100 MHz
Operating Temperature -10°C to +50°C (14°F to 122°F)
Operating Humidity  90% RH or less (no condensation)
Finish Control section: ABS resin, black
 Dimensions 210 (W) x 44 (H) x 181 (D) mm (8.27" x 1.73" x 7.13")
Weight 560g (1.23 lbs)


• Optional product
MB-WT3 Rack Mount Kit
