YC-531HSW-AM

YC-531HSW-AM RS Series Heater Surface Mount Back Box

YC-531HSW-AM

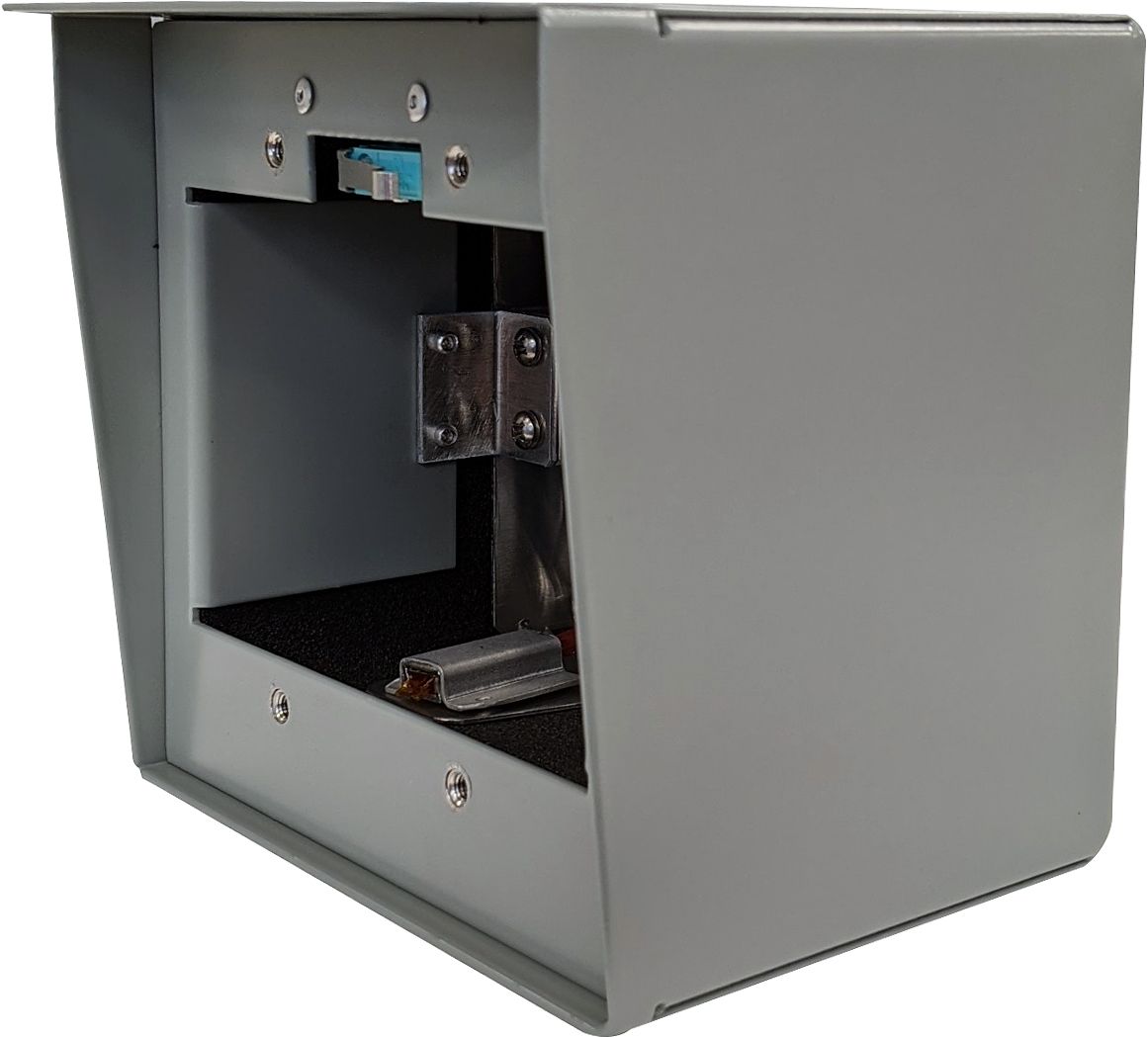

The YC-531HSW-AM is a surface mount back box for the RS series intercom stations of the N-8000 intercom system. It is equipped with two heaters for installations in cold environments (up to -40°C), a thermostat that turns on the heaters when the temperature is below (+4°C ± 4°C) and turns them off when the temperature is above (+15°C ± 4°C).











QTY: Add to Request for quote Request for quote

Specifications

  Number of units 2 x 10W
Heaters Power source 24V AC or DC (supplied from optional AD-246 power supply unit or equivalent)
  Power Consumption Max. 20 W
   Wiring Terminal Wiring Terminal
Thermostat Series 1/2" Disc
  Type Automatic Reset
  Function Open On Rise (Normally Closed)
  Open Temperature 15°C (60°F) ± 4°C
  Close Temperature 4°C (40°F) ± 4°C
Tamper Switch  Normally open switch, pre-attached one pair cable with no termination
Operating Temperature -40°C (-40°Fto +50°C (+122°F)
Finish Steel, painted in gray (RAL 9006 or equivalent)
Weight  2.40 lbs. (1.09 Kg)
Dimensions  4.89”(w) x 4.89”(h) x 4.65”(d) (124 x 124 x 118mm)
Compatibility RS-150,
RS-160,
RS-170,
RS-180,
RS-450,  RS-460,  RS-470,
RS-480,
