SP-11NRB QAMQV

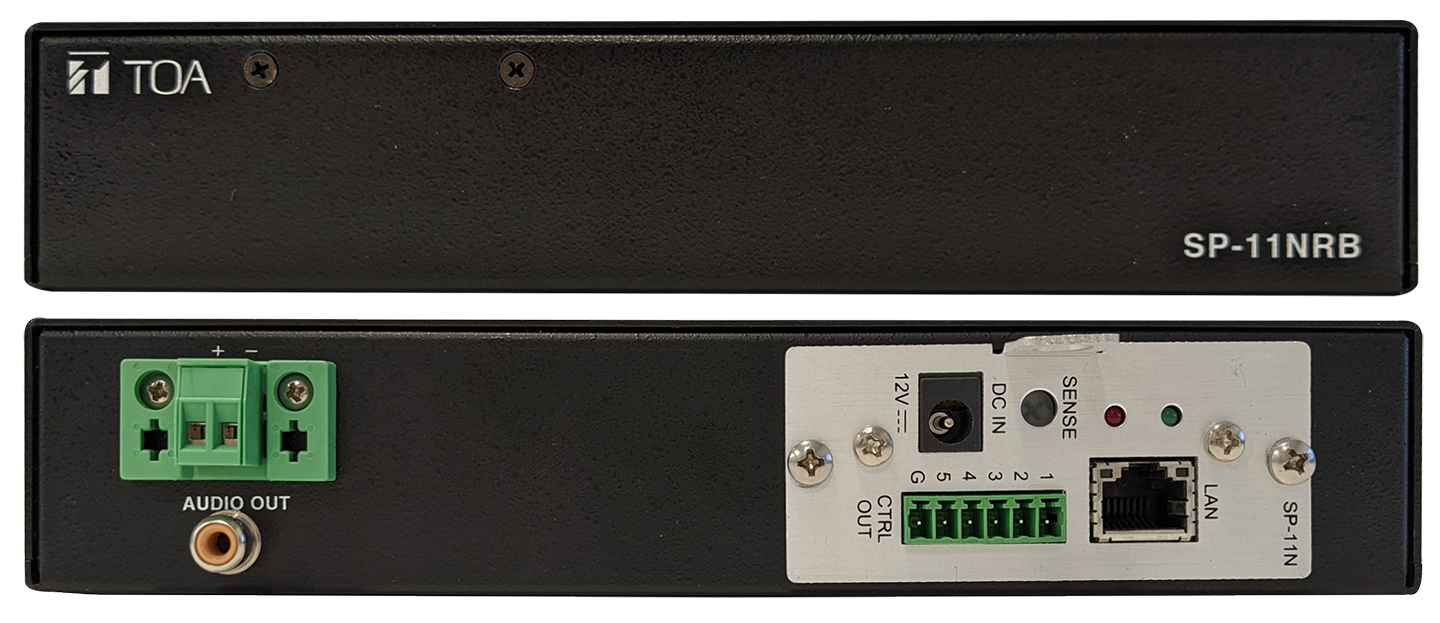

SP-11NRB SIP Interface Chassis for SP-11N

SP-11NRB QAMQV

The SP-11NRB is a stand-alone chassis for TOA’s SP-11N AM SIP interface module. This chassis allows systems that do not support TOA’s 900 series modules to take advantage of the capabilities of the SP-11N AM.





QTY: Add to Request for quote Request for quote

Specifications

Power Source  None
Module Slot 1 slot
Line Output  Removable terminal block (unbalanced) x1, RCA x1 (unbalanced)
Finish Steel (black)
Dimensions  8.22”(w) x 1.58”(h) x 4.06”(d) (208.8 x 40.1 x 103.1mm)
Weight  1.5 lbs. (680g)
Operating Temperature -32°F (0°C) to +104°F (+40°C)
Accessories MB-15B-BK Half Width Blank Panel

*Interface with SP-11N module
