DT-940 UL

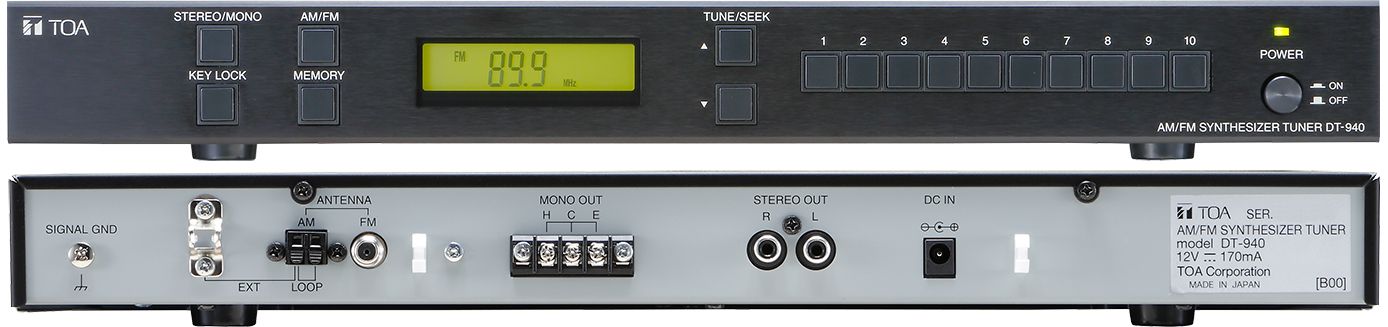

DT-940 AM/FM Synthesizer Tuner

DT-940 UL

The DT-940 radio tuner is designed for exclusive use with TOA's 900 series amplifiers. It is capable of receiving FM stereo broadcast and storing a total of 40 FM and AM stations. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).



QTY: Add to Request for quote Request for quote
Specification
*0 dB = 1 V
Power Source 120 V AC, 60 Hz (supplied from the AC adapter (accessory))
Power Consumption 60 mA (when AC adapter (accessory) is used)
Receiving Frequency FM: 87.9 - 107.9 MHz (100 kHz step)
AM: 520 - 1710 kHz (10 kHz step)
Antenna Input FM: 75 Ω (unbalanced), F type connector
AM: Loop antenna ( balanced )/external antenna (unbalanced), push type terminal
Audio Output Stereo: -15 dB ( *1 ), 10 kΩ, unbalanced, RCA jack
Monaural: -10 dB ( *1 ), 10 kΩ, balanced,
MM3 screw terminal, distance between barriers: 6.4 mm ( 0.25"), RCA jack
Channels of Memory 20 channels for AM, 20 channels for FM
Operating Temperature 0 ·c to +40 ·c (32 'F to 104 'F)
Operating Humidity 90 %RH or less ( no condensation)
Finish  Panel: Aluminum ( hair-line finish), black
Case: Pre-coated steel plate, black
Dimensions 420 (W) x 50.8 (H) x 294.2 (D) mm (16.54" x 2" x 11.58")
Weight 2.9 kq (6.39 lb
Accessory AC adapter ( 1.5 m ( 4. 92 ft)) ... 1, RCA stereo cord ( 1 m ( 3. 28 ft)) ... 1, AM loop antenna (For indoor use only, 135 x 125 mm (5.31" x 4.92"), leadwire: 1.2 m (3.94 ft)) ... 1, FM wire antenna (For indoor use only, element lenqth: 2.2 m ( 7.22 ft)) ... 1
Option Mounting bracket kit: MB-15B
