EQ-0101A

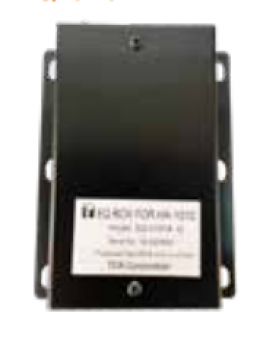

EQ-0101A  Equalizer for HA-1010

EQ-0101A

 The EQ box exclusive used for the HA-1010 long range slim speaker. This product ensures clarity by long distance transmission and protect the speaker driver unit. To use this product, please insert it to power amplifier on audio line.



QTY: Add to Request for quote Request for quote

Specifications

 Power Source DC 12V~24V
Current Consumption   100mA
Audio Input  LINE 0dBV, 600Ω, balance
Audio Output   LINE 0dBV, 600Ω, balance
Display   Power indicator light (green)
Sound Quality Correction  PEQX2 point, HPF
Limiter  Built in
Volume control function  Adjust (±10dB) the output gain after limiter
Ratio 1% or less (LINE) at 1kHz, Input 0dB, Output 0dB
Noise (JIS-A) 60dB or more
Operating temperature -10 to 50°C
Finish  Surface-treated steel plate, black (Munsell N1.0 approximate color)
Dimension  100 (W) x 35 (H) x 120 (D) mm
Weight 0.3 kg
Accessory Signal wire (2 core shielded wire with separated tip, length 1m, Euro
Connector) x 2
Power wire (Parallel Primary Wire with separated tip, length
1m, Euro Connector) x 1,
Earth wire (green, 1m) x 1



** special order
