EM-380

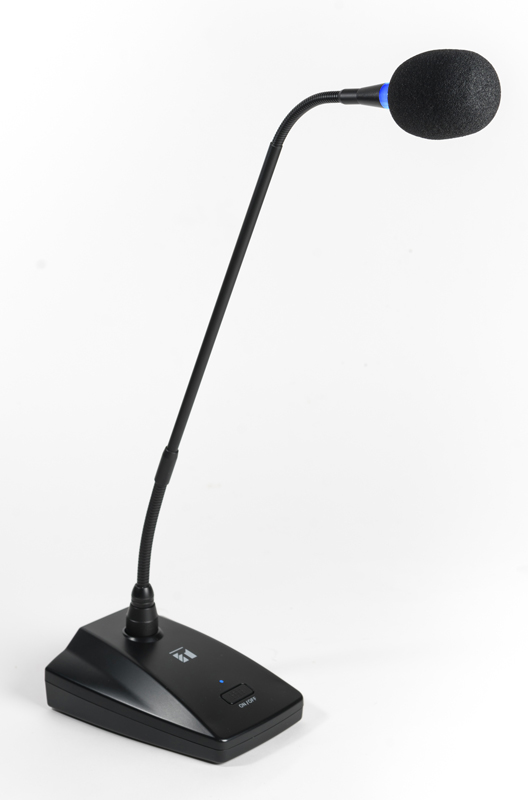

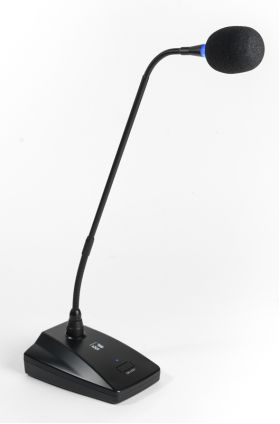

EM-380-AM Gooseneck Microphone

EM-380

The EM-380-AM is a uniquely shaped and high quality condenser microphone most suited for use in lecture halls and houses of worship. The EM-380-AM gives you the option of using battery or phantom power.









QTY: Add to Request for quote Request for quote
Specification
Power Source  3V DC (2 x "AA" batteries) or Phantom Power (9 - 52V)
Microphone Element Condenser
Polar Pattern  Cardioid
Rated Impedance 750Ω, Balanced
Rated Sensitivity -41dB ± 3dB (1 kHz 0dB=1V/Pa)
Frequency Response 50 Hz - 16,000 Hz
Output Connector XLR-3-32 Equivalent
Operating Temperature 0 °C - 40 °C (32 °F - 104 °F)
Finish Stand Mic: ABS Resin, Black, Paint
Mic Shaft: Copper alloy, Black, Paint
Dimensions 110 (W) x 145 (D) x 532 (H) mm (4.3" x 5.7" x 20.9")
Weight 550g (exclude batteries)
Accessory Windscreen x 1,
XLR male to female Microphone cable (24.6 ft) x 1
