S2.4-RX1

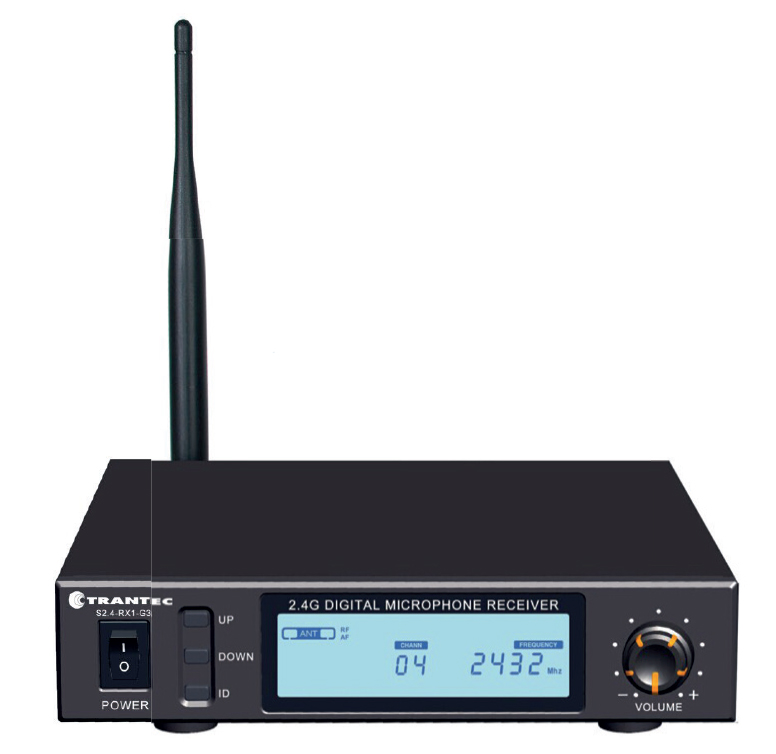

S2.4-RX1 Digital Wireless Single Receiver

S2.4-RX1

S2.4 Series 16 Channel Digital Wireless System, 1 Ch. single Receiver with LCD (Half size). Can transmit up to a distance of 30m, Single system comes with either a handheld microphone or a beltpack transmitter.



QTY: Add to Request for quote Request for quote

Specification

Carrier Frequency    2.404-2.474 GHz
 Available Channels   16
Band Range   2MHz
Output   XLR Mic level out and a ¼” MIX OUT Line Level
Dynamic Range   85dB
Total Harmonic Distortion   <0.1%
Power Supply  12VDC  0.5a or 1.0a
Consumption Power   2W
Signal to Noise Ratio   >95dB
Receiving Sensitivity   -80dBm
Weight 1.6 kg (3.5 lb.)
 Dimensions   W 8.38"  x  H 1.65"  x  D 5.25"
