S2.4BX

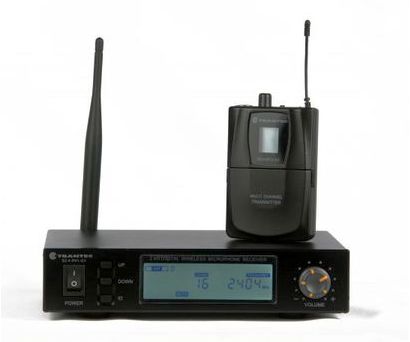

S2.4BX Digital Wireless Microphone System with Beltpack Transmitter

S2.4BX

Receiver-RX1;

S2.4 Series 16 Channel Digital Wireless System, 2 Ch. Dual Receiver with LCD (Half size). Can transmit up to a distance of 30m, This dual receiver system comes with one beltpack transmitter and one Handheld Transmitter.

Beltpack Transmitter - BTX;

Credit card sized beltpack with Simple programming of transmitter with built in infrared data link.
Frequency and power lock facility. Clear and intuitive LCD display Detachable antenna and professional metal enclosure.



*S2.4-LMO - Lavaliere Microphone Included



QTY: Add to Request for quote Request for quote

Specification

Single Receiver


Carrier Frequency    2.404-2.474 GHz
 Available Channels   16
Band Range   2MHz
Output XLR Mic level out and a ¼” MIX OUT Line Level
Dynamic Range   85dB
Total Harmonic Distortion   <0.1%
Power Supply    12VDC  0.5a or 1.0a
Consumption Power   2W
Signal to Noise Ratio   >95dB
Receiving Sensitivity   -80dBm
Weight 1.6 kg (3.5 lb.)
Dimensions W 8.38" x  H 1.65" x  D 5.25"



 Beltpack Transmitter

RF Carrier Power 10mW
Modulation System GFSK
Ultraharmonics <20dB
Power Supply 2 x AA battery
Battery Life Approx. 5 hours
Weight 250 g (0.55 lb.)
Dimensions W 2.5" x H 3.7" x D 1"

 *S2.4-LMO - Lavaliere Microphone Included

*rack mount kit included
