PC-580SBT

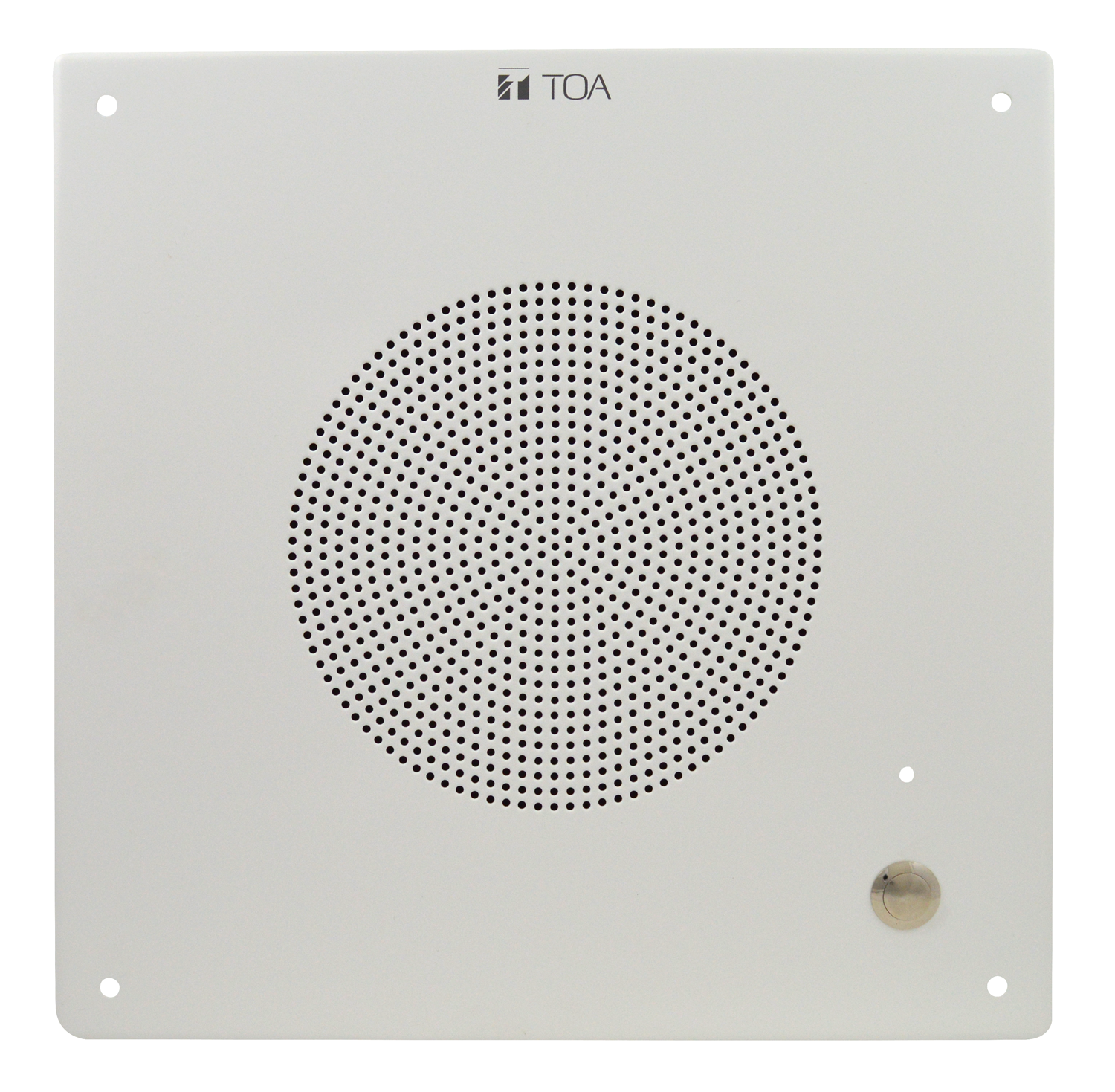

PC-580SBT Square 8” In-wall Speaker with Call Button

PC-580SBT

TOA’s PC-580SBT is designed to work with N-8000 IP Intercom System as a station call button and speaker.

Features:
• 8” square in-wall speaker for intercom applications (requires RS series station board: RS-142, RS-442, N-8640SB, etc.)
• Push-button for calling master station
• Unique “monocoque” design provides better structural integrity
• Hole drilled in baffle for mounting of microphone (supplied separately)



QTY: Add to Request for quote Request for quote

Specifications:

Rated Input 10W (speaker), 5 W (transformer, 70.7 V line and 25 V line)
Rated Impedance

70.7 V line: 20 K (0.25 W), 10K (0.5W), 5K (1 W), 2.5 K (2 W), 1 K (5 W) Ohms
25 V line: 2.5 K (0.25 W), 1.25 K (0.5 W), 625 (1 W), 312.5 (2 W), 125 (5 W) Ohms
Sensitivity 97 dB
Frequency Response 50 - 16.5 KHz
Speaker Component 200 mm (8”) dual cone type
Magnet Size Dia. 80 (3.15”) x dia. 32 (1.26”) x 12 (0.47”) mm
Magnet Weight 272g (10 oz)
Flux Density 11,900 gauss
Dimensions of Fixing Hole Dia. 203.2 mm (8.00”)
Finish Baffle: Steel plate, white
Grille: Steel plate, white
Dimensions 318 x 318 x 84.5 mm (12.52" x 12.52" x 3.33")
Weight 1.74 kg (3.84 lbs)
Accessory Mounting screw (M 5 x 38 mm) x 4; Wire nut x 2
Push Button Push Button momentary N/O dome head rated at 125V 4A
Option Flush mount back box: Q-BB-580S
Surface back box: Q-BB-580W
Drilled mounting hole in baffle for optional microphone (supplied by user)
