SO-MIX-T-24V

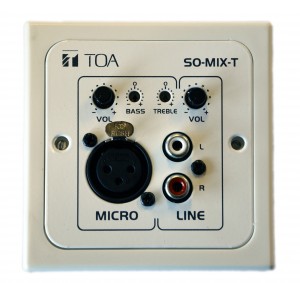

SO-MIX-T-24V Remote Mixer

SO-MIX-T-24V
  • Microphone and line level input
  • Two inputs, one balanced output
  • Individual volume control with joint bass and treble control
  • Automatic mix with selectable Talkover function. 30dB, Talkover time: 3 seconds.
  • Optional Accessory: 2-Gang accessory wall plate: SO-MIX-PLATE
  • AD-246 AC Adapter required



QTY: Add to Request for quote Request for quote

Specifications:

Power Source 24 V DC
Output 0dBV
Power/Current Consumption 40mA
Input

Microphone XLR balanced input, Sensitivity -20/-40dBV
RCA unbalanced input
Output Euroblock connector line level 0dBV
Phantom Power 24 V selectable
Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz
Operating Temperature -10℃ to +40℃ (14°F to 104°F)
Finish White
Dimensions 86 (W) × 86 (H) × 36 (D) mm (3.35” x 3.39” x 1.42”)
Optional Accessory

2-gang wall plate SO-MIX-PLATE, AD-246 AC Adapter



Remote Mixer (SO-MIX-T-24V) with Wall Plate (SO-MIX-PLATE):

Remote Mixer with Wall Plate
