MIC-X690H

MIC-X690H Glasses Frame Microphone for S5 Series

MIC-X690H

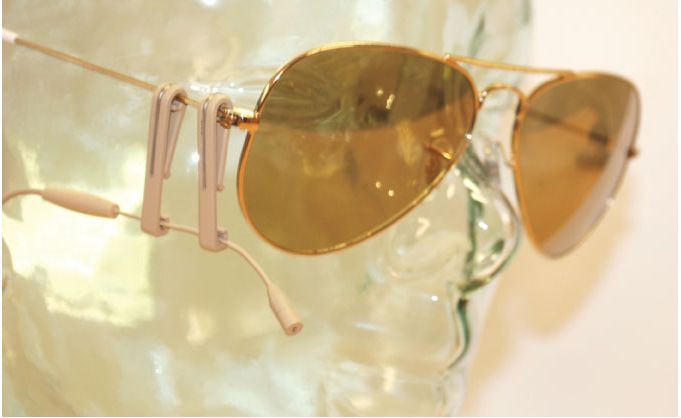

The MIC-X690H high quality glasses frame microphone has been designed to offer the finest microphone alternative for users with glasses. Designed with a view to flexibility, the single sided microphone fits tightly onto several frame sizes. The MIC-X690H is lightweight and does not limit the movement of the user, the microphone is mounted onto a boom enabling adjustments to the microphone to allow for optimum sound quality.



QTY: Add to Request for quote Request for quote

Specifications:

Type: Omni-directional electret condenser
Nominal Impedance: 100 ohms
Max SPL:  >58 dB (high SPL version available)
Operating Voltage: 1-10 volts min/max
Current Consumption: 50 µA
Frequency Response: 20 Hz - 20 kHz, ±3 dB
Cable Length: 1300 mm
Connector 4 Pin Mini XLR
Colours Available: Beige

Note: Please inquire with customer service or your regional sales representative as some of our wireless microphone accessories may not be available in Canada.
