WT-5100

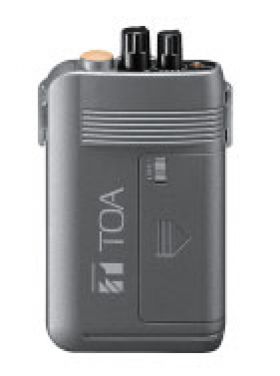

WT-5100 Wireless Portable Receiver

WT-5100
  • Commercial earphones can also be used (ø3.5 mm, impedance: over 16Ω)
  • Allows up to 16 different frequencies to be received by selection
  • An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature or voltage fluctuation.
  • WB-2000 rechargeable battery or single AA battery operation for compact and lightweight body
  • Built-in antenna



QTY: Add to Request for quote Request for quote

Specifications:

Power Source 1.5 V DC (Battery)
Receiving Sensitivity Better than 60 dB Signal to Noise ratio (20 dBμV input, ±40 kHz deviation)
Frequency Response 200 Hz – 5 kHz (Portable transmitter to Portable receiver)
Output Level 4 mW (16Ω load, 10% distortion)
Battery WB-2000-2 rechargeable battery (option) or LR6/AA alkaline dry cell battery
Battery Life 16 h (when the WB-2000-2 rechargeable battery is used) 15 h (when the alkaline battery is used)
Dimensions 62 (W) × 163.6 (H) × 32.5 (D)mm (2.4” x 6.4” x 1.3”)
Weight 125 g (0.28 lbs) (battery included)

*When using an earphone not made by TOA, use the one with a ø3.5mm plug and impedance of over 16Ω.
