V-01S VCA Module

V-01S

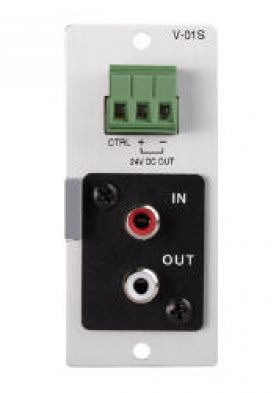

The V-01S is a plug-in type VCA module designed to be used in conjunction with TOA's 900 Series amplifiers. Its 3P terminal block is equipped with a 24 V output that supplies power to an external controller, and a control input. The gain between IN and OUT is set within the range of -100 to 0 dB referenced to the 0 - 10 V control voltage.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source 24 V DC
Current Consumption Under 25 mA
Maximum Allowable Input +14 dB*
Noise Output (20 Hz - 20 kHz BPF) Under 50 μV
Distortion (1 kHz, 1 V) Under 0.03 %
Frequency Response 20 - 20,000 Hz (±1 dB)
Input Connector RCA pin jack
Output Connector RCA pin jack
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 51 g
Variation characteristics (typical)
-10
-20
-30
-40
-50
Gain (dB)
-60
-70
-80
-90
-100
1
2
3
4
5
6
7
8
9
10
Control Voltage (V)
