YW-7570

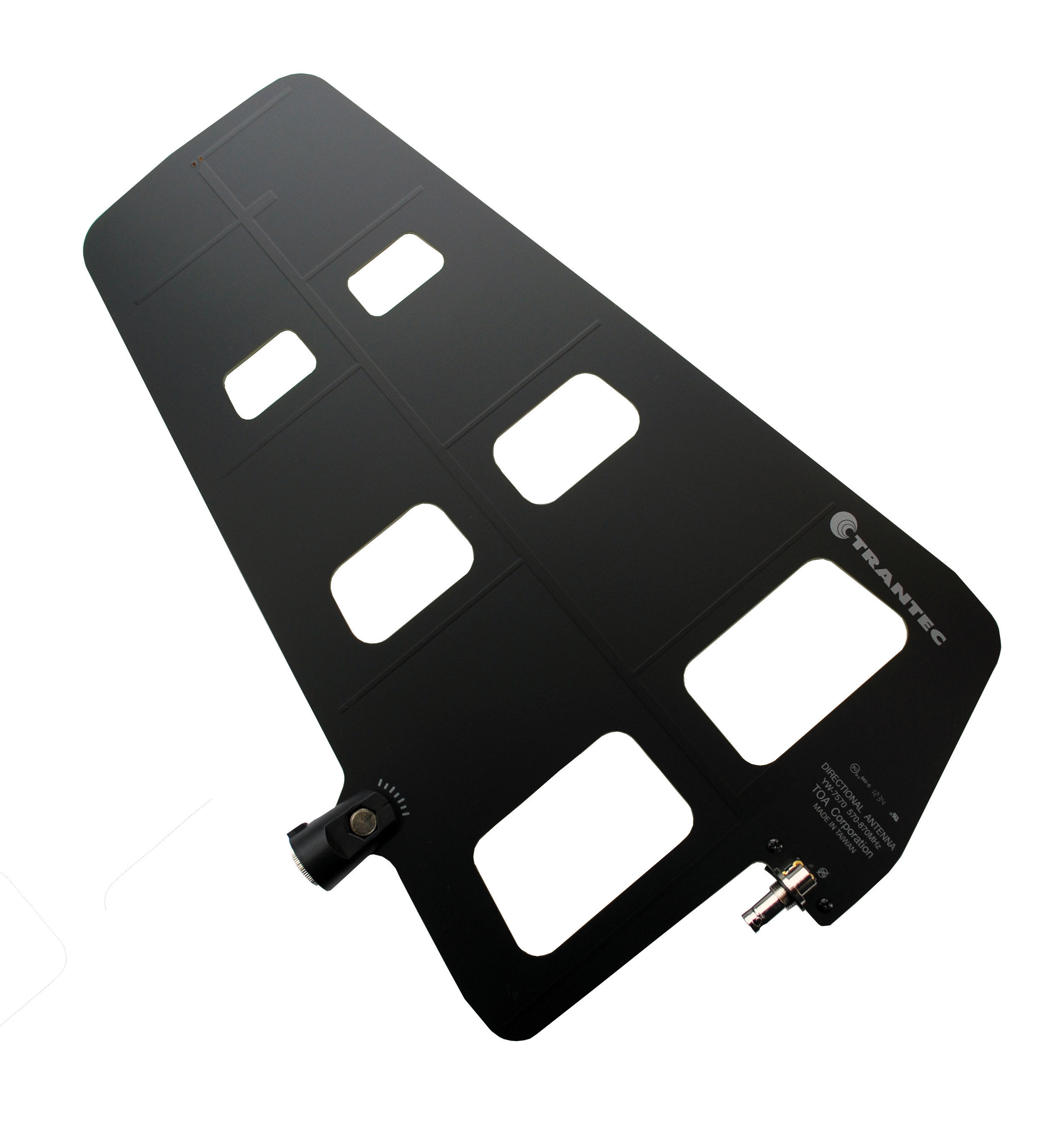

YW-7570 Remote UHF Directional Antenna

YW-7570

The YW-7570 is an antenna for the TRANTEC UHF band wireless system. They are designed to be mounted on an optional microphone stand.



QTY: Add to Request for quote Request for quote
Specification

Frequency Range

 570 - 870 MHz
Type of Antenna Log-periodic antenna
Antenna Gain 6 dBi
V.S.W.R 2.0 or less
Output Impedance 50 Ω
Output Connector BNC jack
Mounting Screw NS5/8 (with adaptor to W3/8)
Finish FR-4 glass epoxy board, t2.0
Dimensions 433 (W) × 288 (H) × 31.7 (D) mm (17.05" x 11.34" x 1.25")
Weight 315 g (0.69 lbs)

Updated 12/11/15
