YM-1J

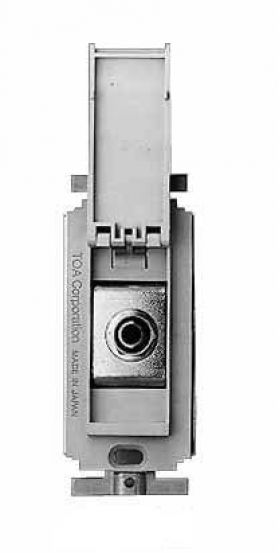

YM-1J Mic Connector

YM-1J

1/4" female TRS jack, single gang wall plate with cover.

QTY: Add to Request for quote Request for quote

Specifications:

Jack Double pole jack
Usable Cable Microphone vinyl cable with sectional area of 0.75 ~ 2.0 ㎟
Usable Plate YP-1AF
Usable Plug Single or double pole plug
Finish Cover: ABS resin (off white)
Frame: Steel plate (t=1.2)
Dimensions 45 (W) x 110 (H) x 48 (D) mm (1.77" x 4.33" x 1.89")
Weight  750 g (1.65 lb)
Accessory Screw M4 x 35 x 2

* When routing a power or speaker line and a microphone line through the same electric box, provide a barrier between the two of insulation.

* For cables with sectional area of under 0.75 ㎟, fold back their cores to increase the sectional area before making a connection.

* H (hot), C (cold), and E (ground) are shorted. Therefore mixers or amplifiers using phantom power cannot be used.
