AV-60S

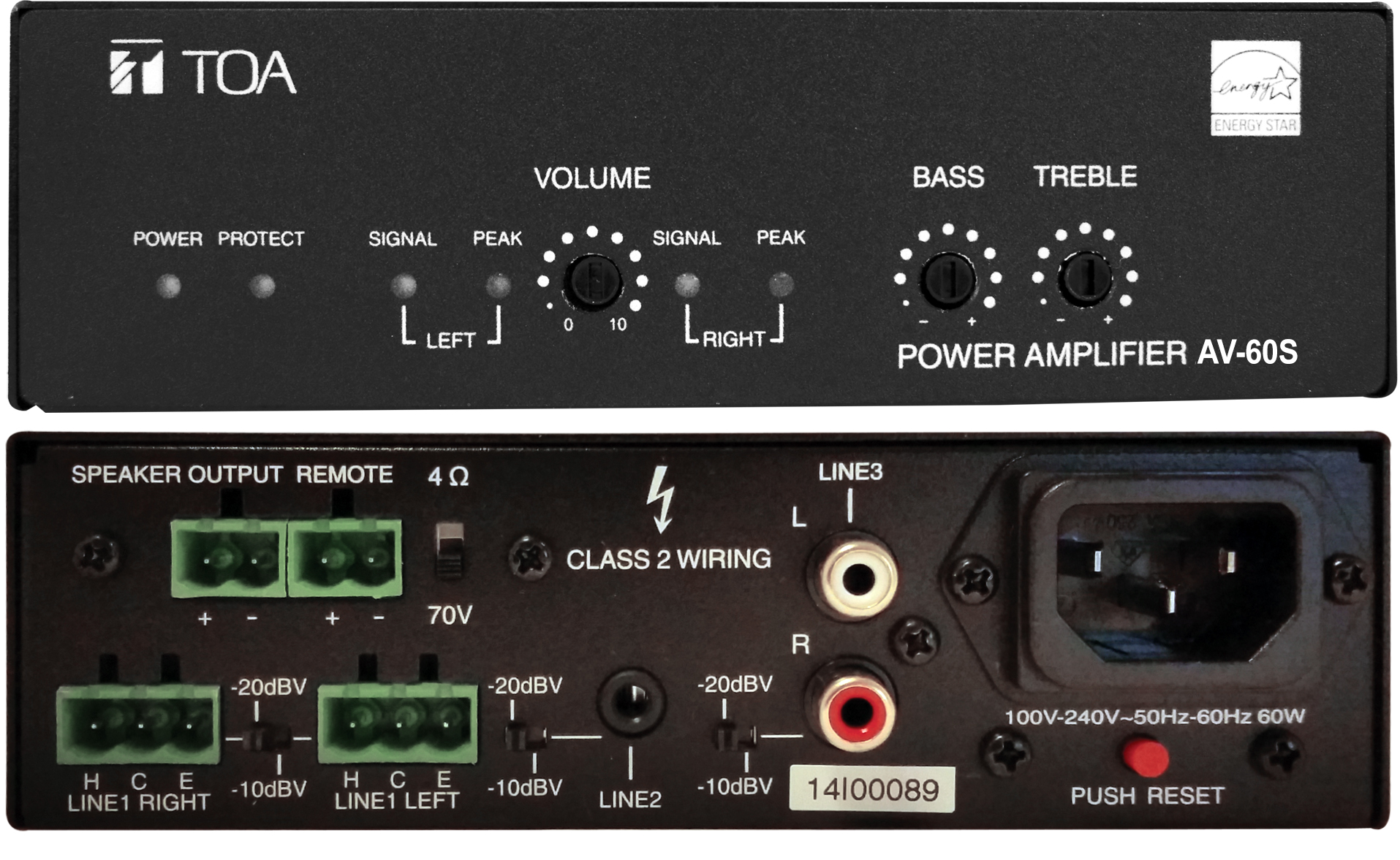

AV-60S-AM Micro Amplifier

AV-60S-AM

The AV-60S-AM is a single channel digital amplifier for speech and general announcement. This compact amplifier is equipped switching power supply circuit inside, Energy Star 3.0 certified and PLENUM rated (UL 2043 tested) for the installation into air handling space without external AC adaptor. The rated output power is 60W at 70V or 4 Ohms. The unit is suited to use in board room, conference room and AV presentation room.



QTY: Add to Request for quote Request for quote

Specifications

*0 dB - 1 V

Power Source 100V-240V AC, 50Hz/60Hz
Rated Output 60W @ 4 Ohms, 60W @ 70 V
Power Consumption Rated Output Less than 85 W @ 70 V, Less than 110 W @ 4 Ohms
Idle Power Consumption Less than 10 W @ 70 V, Less than 7 W @ 4 Ohms
Power Consumption in Power Saving Mode Less than 1 W
Frequency Response 4 Ohms mode: 20Hz to 20KHz ±3dB
70V mode: 60Hz to 20KHz ±3dB
(Line1 input with transformer: 100Hz to 20KHz)
Total Harmonic Distortion  Less than 0.15%
Input

Line 1: -10/-20dB* (selectable), 10 K ohms, transformer-balanced, removable terminal block

Line 2: -10/-20dB* (selectable), 10 K ohms, unbalanced, 3.5mm stereo jack

Line 3: -10/-20dB* (selectable), 10 K ohms, transformer isolated unbalanced, RCA jacks
Output  Speaker output, removable terminal block (2P)
Tone Control  Bass: ±10 dB at 100 Hz, Treble: ± 10dB at 10 kHz
Controls Master volume control
Remote volume control
Bass tone control, Treble tone control
70 V / 4 Ohm switch
Input sensitivity switches (Line 1, Line 2, Line 3)
Indicator Power LED, Protection LED, Signal LED, Peak LED
Other Feature Automatic Level Control, Thermal/Over-current protection, Automatic power save function (EnergyStar rated)
Operating Temperature -10°C to 40°C (14°F to 104°F)
Case Black metal case
Dimensions 150 (W) x 44 (H) x 156 (D) mm (5.9” x 1.73” x 6.14”)
Weight 1.12 kg (2.5 lb)
UL Standards UL2043
Accessories 1/2” EMT adaptor plate
Optional Accessories WPB-20, MB-AV20RM
