AM-1SET

AM-1SET Real-Time Steering Array Microphone System Set

AM-1SET

Equipped with a built-in sensor to detect and track sound sources, the TOA Real-time Steering Array Microphone System captures voices clearly and continuously from either side, above or below. This frees speakers to move back and forth in the vicinity of the podium, turn or tilt their heads to address different sections of the audience, or gesture naturally without concern for the location of the microphone. Placed unobtrusively on top of the podium or pulpit, this innovative voice-tracking microphone completely eliminates the interference and inconvenience of gooseneck or handheld mics.

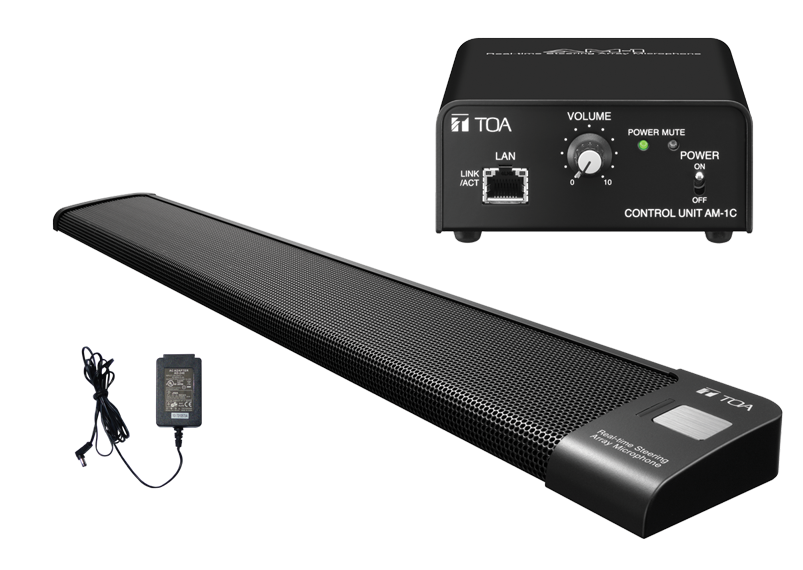

The AM-1SET Includes:

  • AM-1MBQAMX Real-Time Steering Array Microphone System
  • AM-1CQAM Real-Time Steering Array Microphone Control Unit
  • AD-246 AC Adapter



  Polycom®:



QTY: Add to Request for quote Request for quote

Specifications:

Real-Time Steering Array Microphone (AM-1MBQAMX)
Power Source 24DCV 200mA (supplied from Control Unit)
Frequency Response 150Hz — 18kHz
Directivity (Beam Width) 50°
Maximum Cable Distance 200ft / 70m (between microphone and control)
Applicable Cable Twisted two-core, shielded cable
Mute Function Mechanical mute switch
Dimensions 485.14 (W) x 19.812 (H) x 59.944 (D) mm (19.1” x 0.78” x 2.36”)
Control Unit (AM-1CQAM)
Power Source 24DCV 400mA
(including microphone power / supplied by AC adapter)
S/N Microphone Over 90dB
Input Microphone input (audio and communication),
female XLR 3P x 1
Audio Output +4dBu/-10dBV (selectable), male XLR 3P x 2
AES/EBU 24bit 110Ω, male XLR 3P x 1
Network Port RJ45
Accessory AC adapter
AC Adapter (AD-246)
Power Source 110 - 120 V AC, 50/60 Hz
Output 24 V DC, 1 A
Current Consumption 420 mA (rated output)
Cord Length 1.8m
Plug  RC6705 center "+"
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
 Finish Case: Heat-resistant resin, black
 Weight 130 g (0.29 lbs)
Accessory Power Cord (2 m) x 1



AM-1MBQAMX Real-Time Steering Array Microphone



AM-1CQAM Control Unit

AM-1C Front

AM-1C Back



AD-246 AC Adapter

AD-246 AC Adapter
