SX-200IP

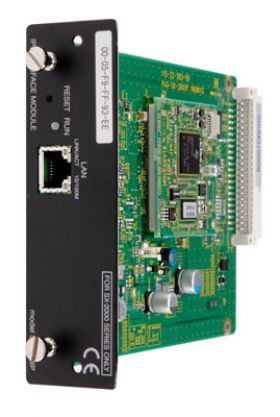

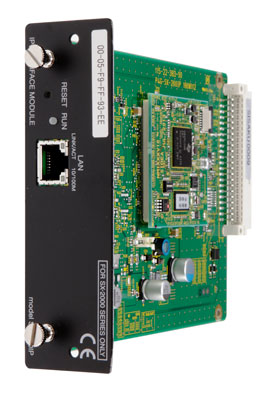

SX-200IP IP Interface Module

SX-200IP

Installed in the SX-2100AI Audio Input Unit of the SX-2000 Series and connected to a network (LAN or WAN), the SX-200IP allows paging announcements to be made to the SX-2000 system from the N-8000 Series station(s) (N-8600MS and N-8610RM) employing the packet audio technology.



QTY: Add to Request for quote Request for quote

Specifications:

Network Section

Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCIP/IP, UDP, HTTP, RTP, ARP, ICMP, ICMP
Connector: LAN: RJ45 connector
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
48 kHz sample rate is used for SX-2000 system only.
Quantifying bit number: 16 bits
Voice encoding method: Sub-band ADPCM, Crypotosystme
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable in the software)
Indicator Operation indicator (RUN)
Operating Temperature 0 °C to +40 °C(32 °F to 104 °F)
Operating Humidity 90% RH or less (no condensation)
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) x 119.5 (H) x 178.4 (D) mm (1.38" x 4.7" x 7.02")
Weight 150 g (0.33 lb)
