S5.3-L-H2US Q

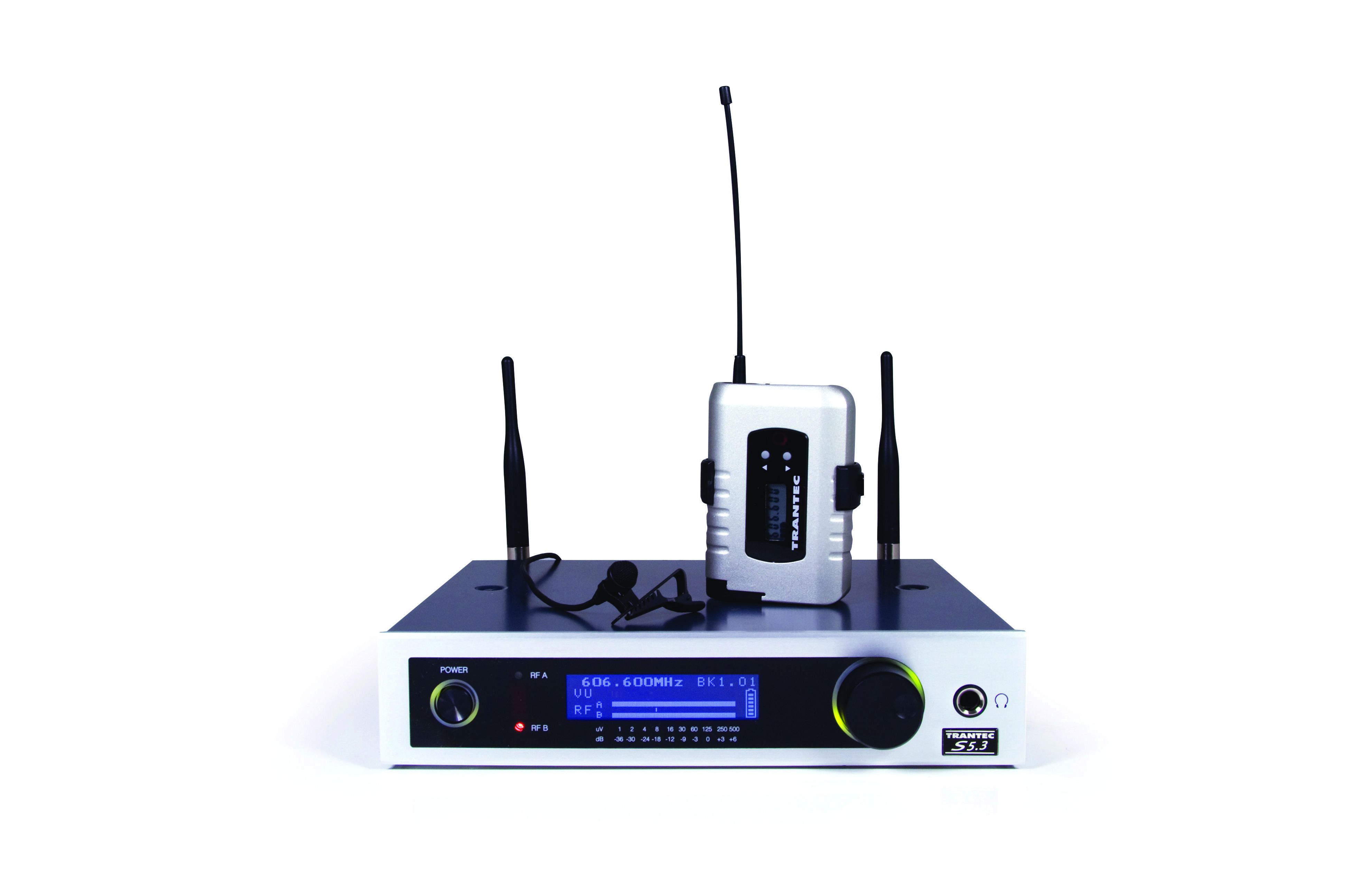

S5.3-L Trantec UHF Lavaliere Wireless Microphone Kit

S5.3-L-H2

25 years after pioneering the first readily available radio mics, Trantec's foresight and imagination has again taken wireless to a whole new level with their groundbreaking S5 Series. Based upon the award winning S6000, widely used in Theater and broadcast, the S5 Series promises a powerful set of features combined with an exceptional performance/cost ratio. For venues of any size, we suggest you check out the specifications of this remarkable system.

The S5.3, one of our latest multi-channel UHF products, is the little brother of the successful S5.5 system. It will enable you to run up to 12 channels simultaneously at a price you will find hard to match.

Frequency Band Selection: H: 576-607 MHz, UHF



Note: Rack mounting kit not included.
MB-15B-BK – for mounting a single receiver;  MB-15B-J - for mounting 2 receivers side by side

QTY: Add to Request for quote Request for quote

Specifications

S5.3-RX - Receiver

Power Consumption 300 mA (13 V DC)
Diversity System Space diversity (true diversity)
Audio Output Line: -22 dB*/ Mic: -62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack
Antenna Phantom Power 9 V DC, 30 mA (max) (Available to turn off phantom power)
Receiving Sensitivity 0 dB μV or less (12 dB SINAD)
Squelch Sensitivity 6 - 36 dB μV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator LCD, Power lamp, Mute lamp, ANT A/B lamp
S/N Ratio 110 dB or more (A-weight)
Harmonic Distortion 1% or less (typical)
Frequency Response 50 Hz - 20 kHz, ±3 dB
Function Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity
Dimensions 210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna)
Weight

1.3kg (2.87lb)



S5.3-BTX - Beltpack Transmitter

RF Carrier Power Less than 50mW (Factory preset 10mW ERP)
Modulation System PLL synthesizer
Maximum Input Level 120 dB SPL (microphone sensitivity: Gain "0")
Audio Input Connector TA-4 (Mini-XLR 4 pins)
Battery LR6 (Single AA)
Battery Life 10 hours (Alkaline)
Indicator LCD display, Power lamp
Function Infra-red Link Port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-9; 20dB)
Dimensions 55 (W) x 80 (H) x 22 (D) mm (2.17" x 3.15" x 0.87")
Weight 140g (0.31lb) (with battery)

Note: Rack mounting kit not included.
MB-15B-BK – for mounting a single receiver;  MB-15B-J - for mounting 2 receivers side by side



MIC-X2 - Miniature Lavaliere Microphone

Type Omni-directional electret condenser
Nominal Impedance 3000 ohms
Max SPL >120dB
Operating Voltage 2-10 volts min/max
Current Consumption 50uA
Frequency response 60Hz-16kHz ±3dB
Cable Length 1500mm
Connector 4 Pin Mini XLR
Colours Available Black
