S-04S Switch-Selectable Tone

S-04S

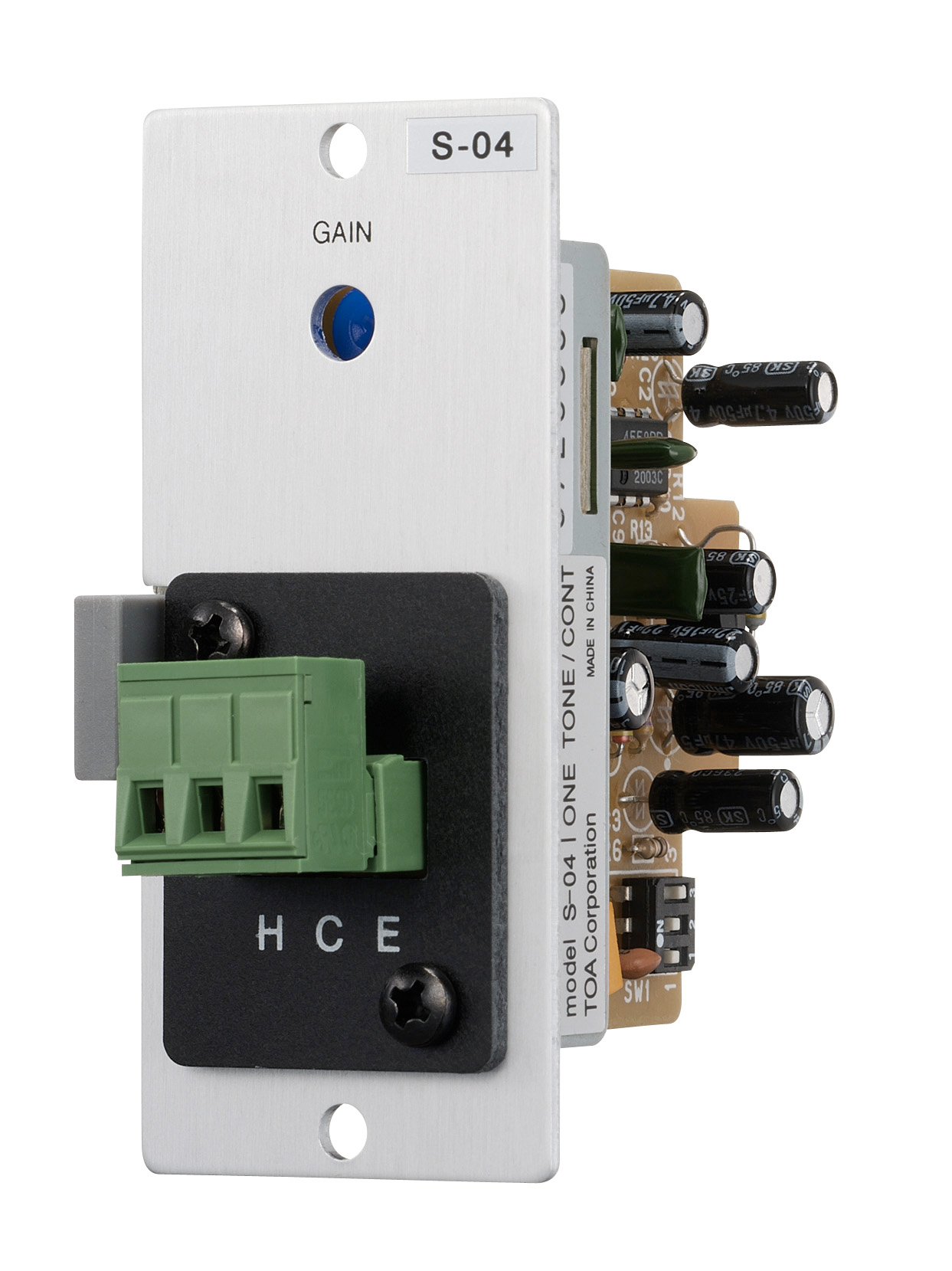

The S-04S is a tone generator module to be used in conjunction with the 900 series components and other TOA equipment. It has a selectable tone generator with removable terminal block connector and gain control.




1 Tone Chime
2 Tone Chime
4 Tone Chime Down
4 Tone Chime Up

QTY: Add to Request for quote Request for quote
Specification
Power Source 24 V DC (supplied from the main frame)
Current Consumption 20 mA
Output Level 1.5 V (p-p) (Rated output: -20 dB*)
Noise Level -80 dB* (20 Hz - 20 kHz BPF)
Gain Off to 0 dB
Available Tone 1/2/4 Tone chime (selectable)
Connector Removable terminal block (3P)
Dimensions 35 (W) x 78 (H) x 88 (D) mm (1.38" x 3.07" x 3.46")
Weight Max. 70 g (0.15 lb)



* 0 dB = 1 V
