Q-PE-304BK

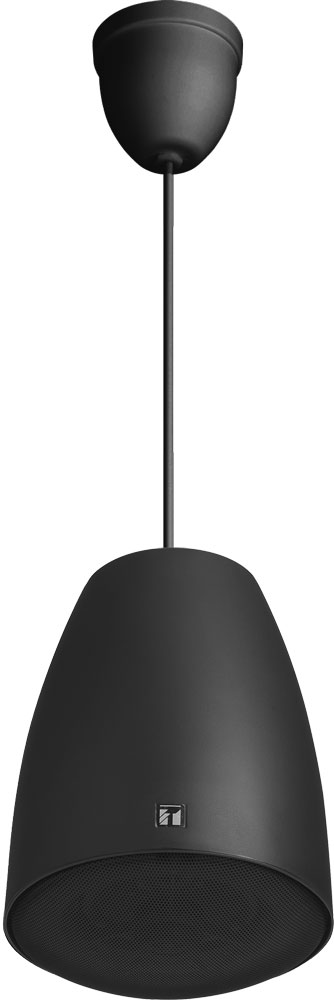

Q-PE-304BK Pendant Public Address Speaker

Q-PE-304BK

The Q-PE-304BK is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The Q-PE-304BK is driven on both high-impedance (100 V and 70V) and low-impedance (8 ) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.



QTY: Add to Request for quote Request for quote

Specifications:

Enclosure Bass-reflex type
Rated Input 30W (100V, 70V line, 8 Ω)
Rated Impedance

100V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15W), 500 Ω (10W) 1 kΩ (5 W)
8 Ω
Sensitivity 91 dB (1 W, 1 m) (500 Hz - 5 KHz, pink noise)
Frequency Response 70 Hz - 20 kHz (peak -20 dB)
Speaker Component 12 cm (5") cone-type + balanced dome-tweeter
Speaker Cord 2-core cabtyre cord 5m (16.4 ft)
Applicable Cable 600 V vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: ⌀0.8 - ⌀1.6 m㎡ (equivalent to AWG 20 - 14)
7-core twisted copper wire: 0.75 - 1.25 mm (equivalent to AWG 18 - 16)
Connection Push-in connector (bridging terminal-2 branch type)
Finish Enclosure: HIPS resin, black
Grille: Surface-treated steel plate net, black, paint
Dimensions ⌀186 x 251 (H) mm (⌀7.32" x 9.88") (unit only)
Weight 2.1 kg (4.63 lb) (unit only)
Accessory Ceiling bracket...1, Mounting hanger...1, Ceiling cover...1, Speaker mounting screw (4 x 16)...4
