AD-246

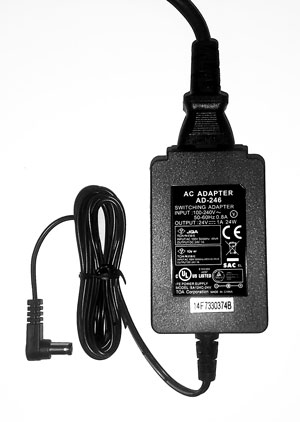

AD-246 AC Adapter

AD-246 US

The AD-246 is a compact switching AC adapter.



QTY: Add to Request for quote Request for quote
Specification
Power Source 110 - 120 V AC, 50/60 Hz
Output 24 V DC, 1 A
Current Consumption 420 mA (rated output)
Cord Length 1.8 m(70.9 in)
Plug RC6705 center"+"
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Finish Case: Heat-resistant resin, black
Weight 130 g (0.29 lb)
Accessory Power cord (2 m(78.7 in)) …1
Do not use this AC adapter for the unit which does not designate its use in combination. Doing so may case a fire.
