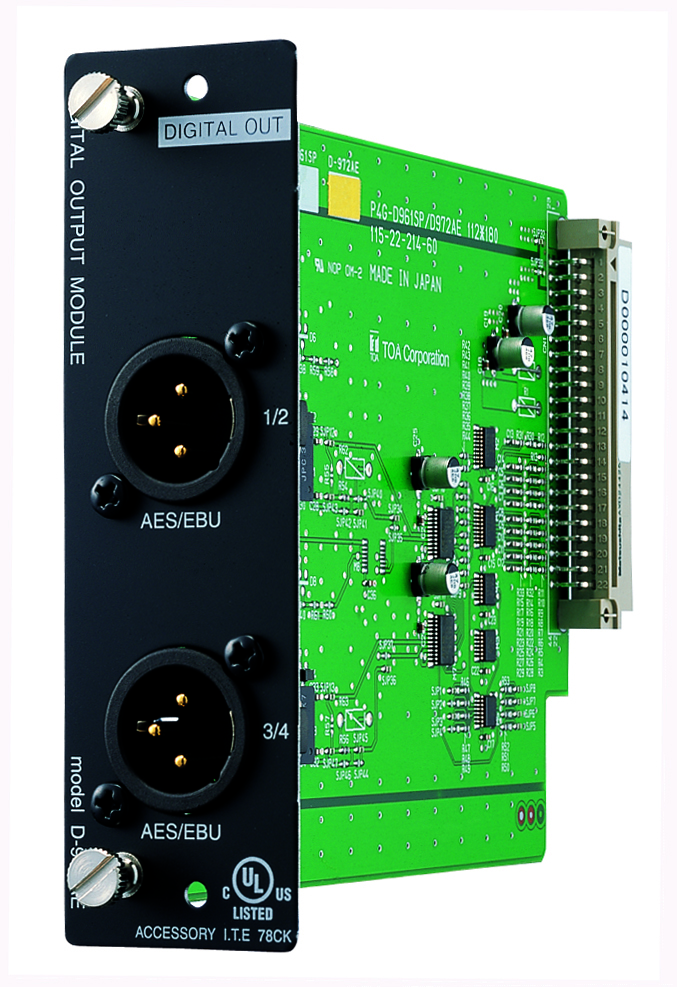

D-972AE Digital Output Module

D-972AE

The D-972AE is a 4-channel line digital output module designed for use with the D-901 Digital Mixer, etc. With the use of this module, digital signals can be output, permitting direct connection of the D-901 Digital Mixer to equipment having a digital input.



QTY: Add to Request for quote Request for quote
Specification
Output 4 channels, 5.0 V (p-p), 110 Ω, XLR-3-32 or equivalent × 2
Applicable Format AES/EBU (2 channel multiplexed)
Sampling Frequency 48 kHz
Finish Panel: Pre-coated steel plate, black, 30% gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 130 g
Accessory Ferrite clamp…2
