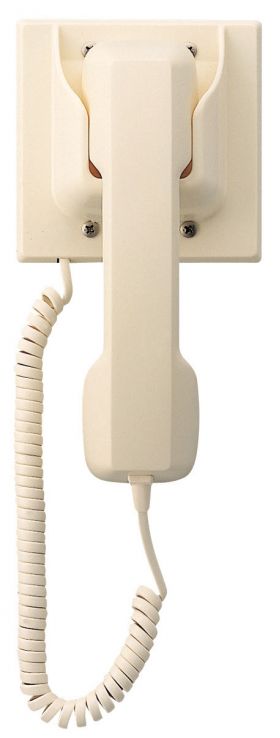

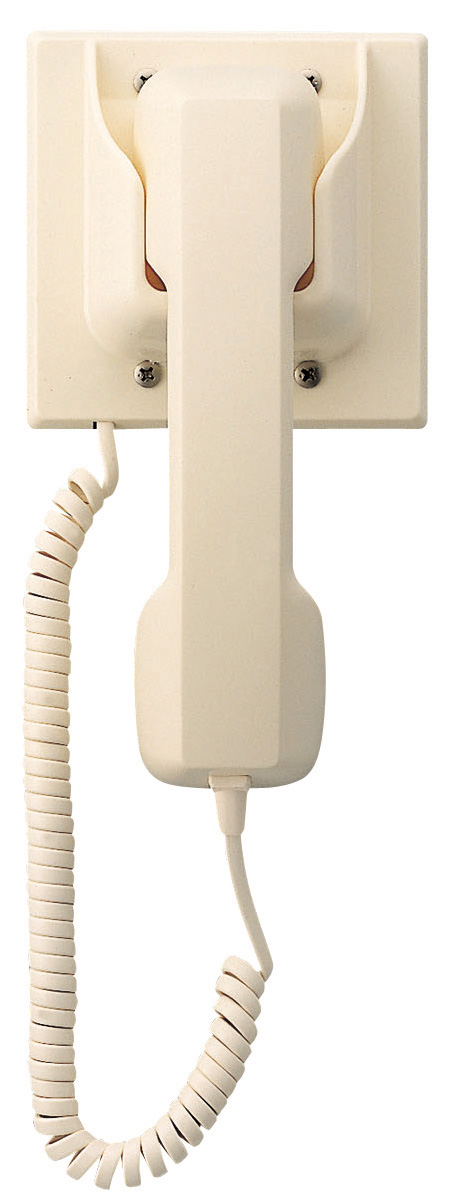

RS-191 Handset Unit

RS-191

The RS-191 Handset is designed exclusively for use indoors in combination with the RS-190 Substation. Lifting the handset permits handset conversation. Handset conversation can be established in conjunction with the optional Flush-mount Hands-free Master Station N-8031MS.



QTY: Add to Request for quote Request for quote
Specification
Handset Receiver Dynamic type
Handset Transmitter Electret condenser type
Operating Temperature 0℃ to +40℃
(Temperature range not to freeze the speaker and switch)
Finish ABS resin, pale white
Dimensions 116 (W) × 220 (H) × 70 (D) mm
Weight 330 g
Accessory Box mounting screw (No.6-32UNC × 8) ……4,
Box mounting screw (M4 × 25) ……4
