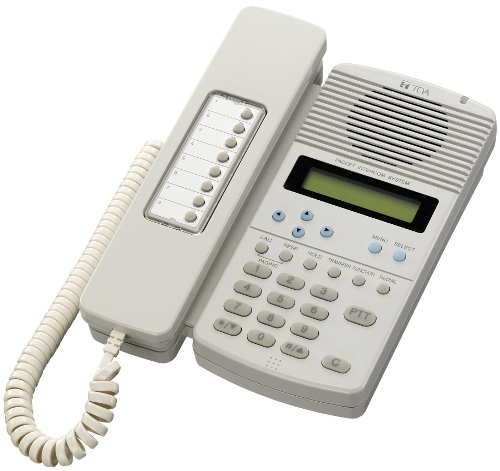

N-8000MS Multifunctional Master Station

N-8000MS Y

This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. In addition to the functions of the standard Master Station, the Multifunctional Master Station provides LCD display, Auto-dialer function enabling one-touch dialing, headset terminal and external speaker terminal. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.





QTY: Add to Request for quote Request for quote
Specifications
* 0 dB = 1 V
Power Source 48 V DC (supplied form the IP intercom exchange (options))
Power consumption 1.8 W (at rated), 2.4 W (max.)
Wiring Method 1 set of twisted pair cable
Transmission System 2 wire 160 kbps echo canceller transmission system
Signal Level 0 dB* or less
Speech Method Hands-free or handset conversation
Audio Frequency Range 300 Hz - 7 kHz
Transmission Range Max. 1500 m (φ0,65 mm, loop resistance 170 Ω)
Hands-free

Speaker: 5.7 cm cone-type, 0,6 W, 8 Ω
Microphone : omni-directional electret condenser microphone
Handset Receive path: Dynamic type
Send path: Electret condenser microphone
Display LCD: Alphanumeric characters (16 characters x 2 lines)
Indication Status lamp
Line Connecting Terminal RJ11 modular jack
Headset Terminal Spaker: 3 mW, 32 Ω; microphone : -49 dB*, φ3,5 mm mini jack
External Speaker Terminal 0.6 W, 8 Ω, screwless connector (2 pins)
Installation Method Desk/Surface mounted master station (when mounted to the wall, use the optional YC-281.)
Operating Temperature 0 ℃ to +40 ℃
Operating Humidity 90% RH or less (no condensation)
Finish Body, Hndset: ABS resin, gray
Dimensions 148 (W) x 208 (H) x 69.7 (D) mm (excluding a curl cord section)
Weight 800 g
Accessory Connection cord (3 m) x 1
Option Wall mounting bracket: YC-280
