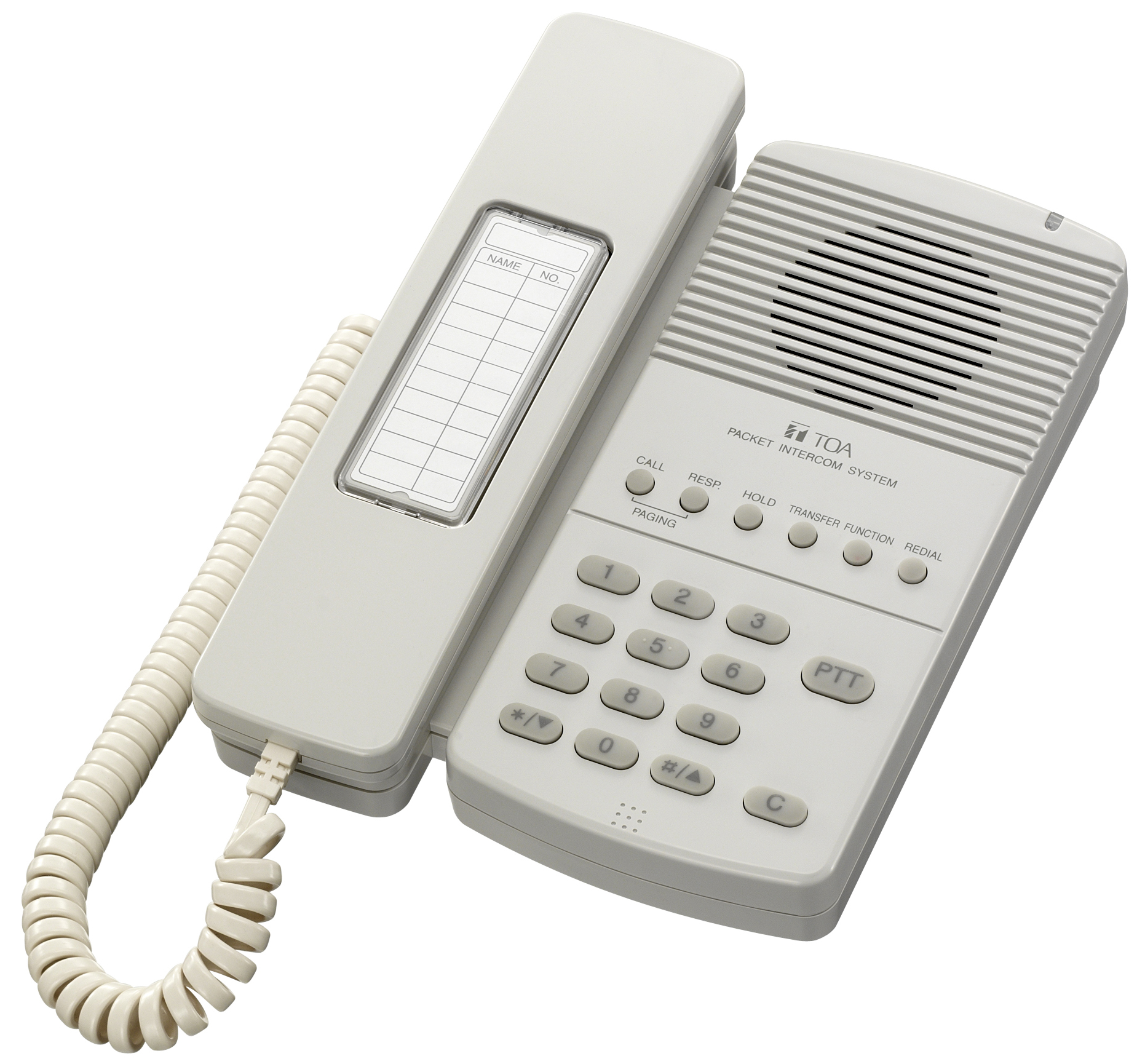

N-8510MS IP Master Station

N-8510MS Y

The N-8510MS is an IP Master station designed for use with TOA's packet intercom system that employs the packet audio technology. Connecting the N-8510MS to an IP network (LAN or WAN) permits hands-free or handset conversation of high sound quality to be made between the N-8510MS and intercom stations connected to the IP Intercom Exchange, or between the N-8510MS units. Besides, the N-8510MS can be used in conjunction with the Multi Interface units through a network. Power can be supplied from the PoE (Power over Ethernet) switching hub. (In this case, an AC adapter is not required.) This station can be mounted to the wall using an optional YC-280 wall mounting bracket.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB = 1 V
Power Source Power supply device that complies with IEEE802.3af standard or
12 V DC (supplied from the AC adapter (option))
Power Consumption 4.2 W (at rated), 6 W (max.)
Speech Method Hands-free or handset conversation
Audio Frequency Range 300 Hz - 7 kHz
Hands-free Speaker: 5.7 cm (2.24") cone-type, 0.6 W, 8 Ω
Microphone: Omni-directional electret condenser microphone
Handset Receive path: Dynamic type, Send path: Electret condenser microphone
External Control Input Terminal No-voltage contact input, open voltage: 5 V DC, short-circuit current: 5 mA or less,
screwless connector (2P)
Network Section

Network I/F: 10BASE-T/100BASE-TX (Automatic-Negotiation)
Network protocol: TCP/IP, UDP, HTTP, RTP, ARP, ICMP, IGMP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 191)
Connector: LAN: RJ45 connector (PoE compatible)
PC: RJ45 connector (not-compatible with PoE)
Voice sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Quantifying bit number: 16-bit
Voice encoding method: Sub-band ADPCM, Cryptosystem
Voice packet loss recovery: Silence insertion
Audio delay time: 80 ms, 320 ms (controllable on the software)
Indication Status lamp
Installation Method Desk/Surface mounted master station
(When mounting to the wall, use the optional YC-280.)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Body, Handset: ABS resin, gray
Dimensions 148 (W) × 208 (H) × 70.5 (D) mm (5.83" × 8.19" × 2.78")
(excluding a curl cord section)
Weight 740 g (1.63 lb)
Accessory CD (for PC setting, maintenance use, emergency message creating software) …1
Option Wall mounting bracket: YC-280, AC adapter: AD-1210P, AD-1215P
