IR-200M Y 4QD00

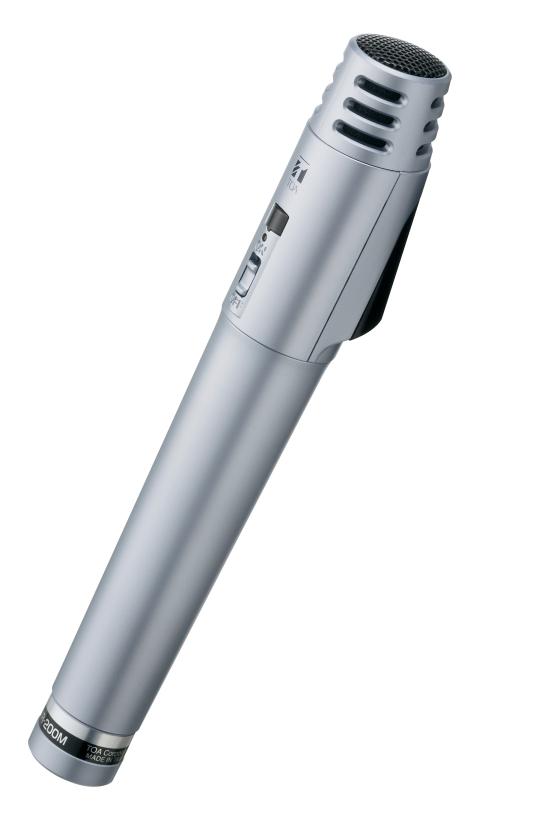

IR-200M Y 4QD00 Infrared Wireless Microphone

IR-200M Y 4QD00

The IR-200M  Y 4QD00 is a handheld infrared wireless microphone. It eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms. Since infrared wireless microphone system uses a frequency band that does not interfere with that of the TS-800 and TS-900 series infrared conference system, both systems can be simultaneously installed in the same location. Possible to use with either Channel  A / B / 1 / 2.

 IR Classroom Brochure IR Classroom Brochure        IR-700 Series

QTY: Add to Request for quote Request for quote
Specification
Battery IR-210BT rechargeable battery for the infrared wireless microphone (2 pieces)
or AA alkaline dry cell battery (2 pieces).
Current Consumption Typ. 250 mA (2.4 V, Power selector switch: N)
Typ. 340 mA (2.4 V, Power selector switch: H)
Infrared Emitter
Wavelength 870 nm (AM: Brightness modulation)
Modulation Method Frequency modulation
Carrier Frequency

Channel A: 3.100 MHz
Channel B: 3.350 MHz

Channel 1: 4.100 MHz
Channel 2: 4.725 MHz
Transmission Distance Approx. 20 m (65 ft) (Power selector switch: H, in an unobstructed space)
Approx. 15 m (50 ft) (Power selector switch: N, in an unobstructed space)
Tone Signal 32.768 kHz
Modulation Sensitivity ±4.8 kHz (1 kHz, when SPL of 84 dB is input)
Maximum Input Sound Pressure 120 dB SPL
Microphone Unit Unidirectional electret condenser microphone
Frequency Response 100 Hz - 12 kHz
Preemphasis 300 μs
Battery Operation Time Approx. 8 h (when the IR-210BT rechargeable battery for the infrared wireless
microphone is used, Power selector switch: N)
Approx. 6 h (when the alkaline battery is used, Power selector switch: N)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 % to 85 %RH
Finish Control section: ABS resin, metallic gray, paint, 50% gloss
Filter section: Polycarbonate, optical cut filter
Dimensions φ37 × 241.8 (H) mm (φ1.46" × 9.52")
Weight 170 g or 0.37 lb (with alkaline batteries)
185 g or 0.41 lb (with dedicated rechargeable batteries)

• Accessories
Screwdriver (for setting) ............................... 1
Color label (6 colors) .................................... 1
• Optional products
Battery Charger : IR-200BC
Rechargeable battery: IR-210BT-2 (containing 2 pieces)
