WS-5325U Wireless Kit

WS-5325U

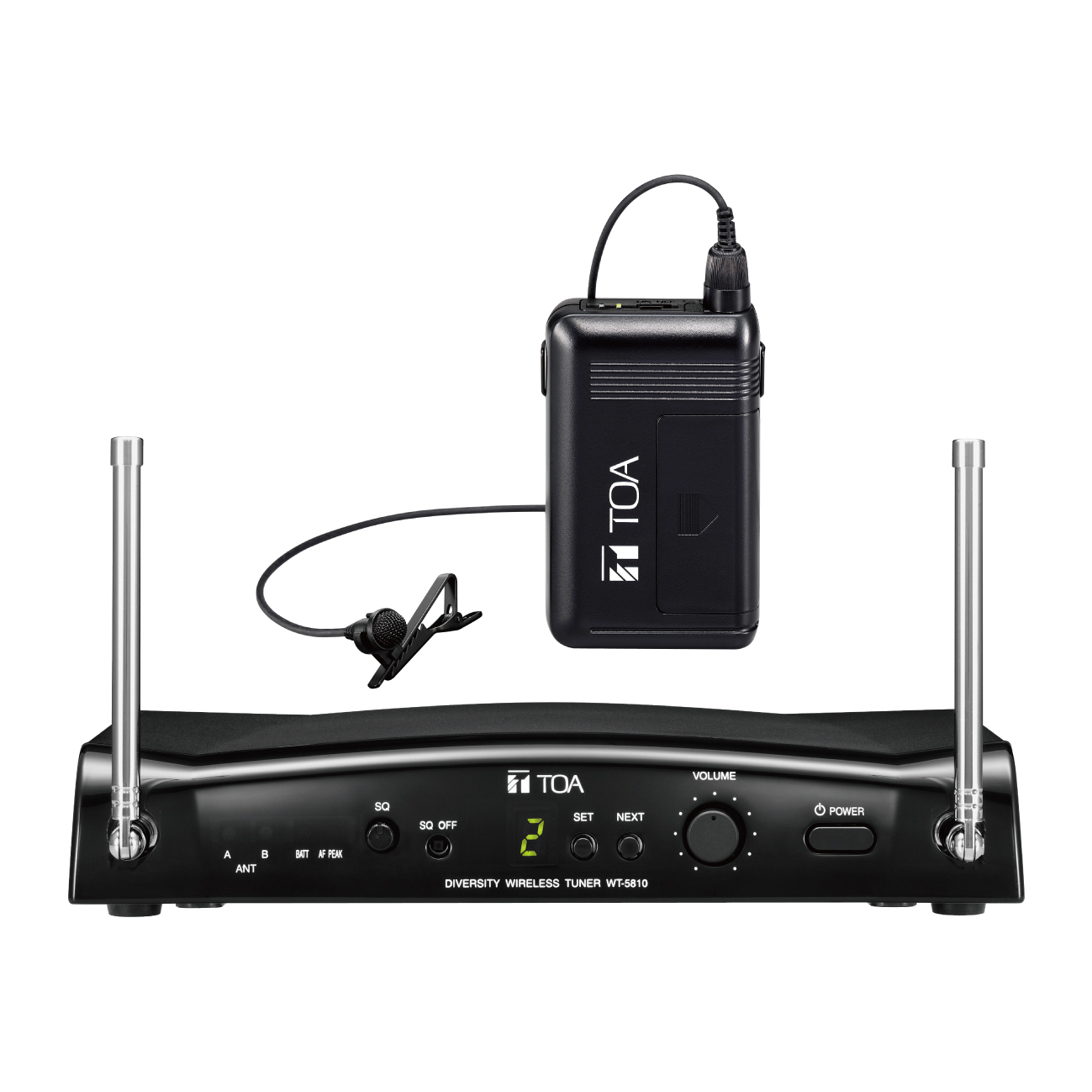

The WS-5325U includes a wireless transmitter WM-5325, a lavalier microphone YP-M5300, and a diversity wireless tuner WT-5810. The WM-5325 wireless transmitter has been manufactured for use with a UHF system. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission. The YP-M5300 employs an electret condenser microphone element and has been designed for use in speech reinforcement applications. The WT-5810 is a PLL-synthesizer controlled double superhetrodyne diversity tuner designed to be used with a UHF wireless system. It employs a compander noise reduction circuit to minimize the influence of ambient RF noise.



QTY: Add to Request for quote Request for quote
Specification
Product Composition Wireless transmitter WM-5325 …1, Lavalier microphone YP-M5300 …1,
Diversity wireless tuner WT-5810 …1
Frequency Range 576 - 865 MHz (*1), UHF
Tone Frequency 32.768 kHz
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Accessory AC adapter (*2) …1, Screw driver …1, Strage case …1, Neck strap …1
Wireless transmitter
(*3) 0 dB = 1 V
Modulation Frequency modulation
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power 50 mW or less
Oscillator PLL synthesized
Maximum Input Level -14 dB to -29 dB (*3) (Audio level control: Min. to Max.)
Battery WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or
AA alkaline dry cell battery
Battery Life Approx. 13 h (when the WB-2000 rechargeable battery is used)
Approx. 10 h (when the alkaline battery is used)
Indicator Power/Battery lamps
Antenna Built-in type
Finish Resin, coating
Dimensions 62 (W) × 102.5 (H) × 23 (D) mm (2.44 × 4.04" × 0.91")"
Weight 90 g (0.2 lb) (with battery)
Lavalier microphone
Microphone Element Electret condenser type: Unidirectional
Sensitivity -63 dB ±3 dB (0 dB = 1 V/0.1 Pa, 1 kHz)
Cord Length 1.3 m (4.27 ft)
Finish Dark black
Weight 20 g (0.71 oz) (cable included)
Diversity wireless tuner
(*3) 0 dB = 1 V
Power Source AC mains (supplied AC adapter must be used)
Power Consumption 130 mA (12 V DC)
Channel Selectable 16 channels
Receiving System Double super-heterodyne
Diversity System Space diversity
Mixing Output MIC: -60 dB (*3), 600 Ω, balanced, XLR-3-32 type connector
LINE: -20 dB (*3), 600 Ω, unbalanced, phone jack
Mixing Input -20 dB (*3), 10 kΩ, unbalanced, phone jack
Antenna Whip antenna
Receiving Sensitivity 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation)
Squelch Sensitivity 16 - 40 dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator ANT A/B, Audio (peak), Battery alarm, Channel number
Channel Check Usable frequencies scanning
Signal to Noise Ratio 104 dB or more (A-weight, unbalanced output)
Harmonic Distortion 1 % or less (typical)
Frequency Response 100 Hz - 15 kHz, ±3 dB
Finish Resin, black
Dimensions 206 (W) × 40.6 (H) × 152.7 (D) mm (8.11 × 1.6" × 6.01") (excluding antenna)"
Weight 590 g (1.3 lb)
