B-41S Bridging Transform

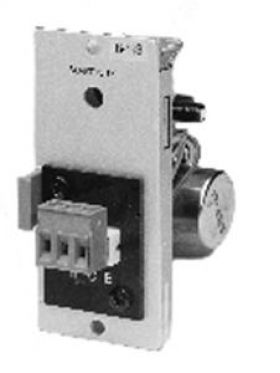

B-41S

The B-41S is a line module to be used in conjunction with the 900 series and AX-1000 amplifier. It has a voice-activated muting control output and a balanced input.



QTY: Add to Request for quote Request for quote
Specification
Power Source 24 VDC
Current Consumption Less than 9 mA
Input Sensitivity (Rated Output 1 V ) 0.7 - 1.4 V
Frequency Response 20 Hz - 20 kHz
Signal-Activated Muting 8 - 15 mV
Input Connector 3P terminal block
Output Connector 6P card edge-connector
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 80 g
