B-11S T

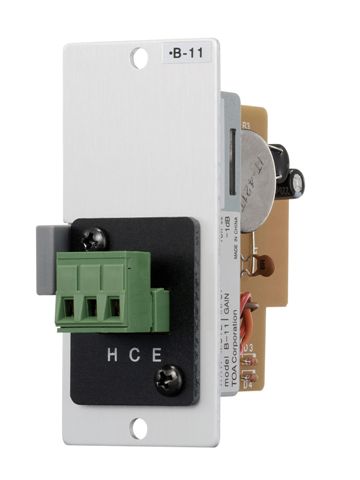

B-11S T Line Input Module

B-11S T

The B-11S is a line input module to be used in conjunction with the 900 series components and other TOA's equipment. It has a transformer balanced line input with removable terminal block connector, and mute-receive function.



QTY: Add to Request for quote Request for quote
Specification
* 0 dB=1 V
Current Consumption 5 mA
Input Sensitivity -16 dB* (Rated output: -20 dB*)
Input Impedance 10 kΩ, balanced transformer-isolated
Frequency Response 20 Hz - 20 kHz %%p1.5 dB
Signal Muting Level 60 dB* (at 1 kHz)
Connector Removable terminal block (3P)
Dimensions 35 (W) × 78 (H) × 88 (D) mm (1.38 × 3.07" × 3.46")"
Weight Max. 80 g (0.18 lb)
