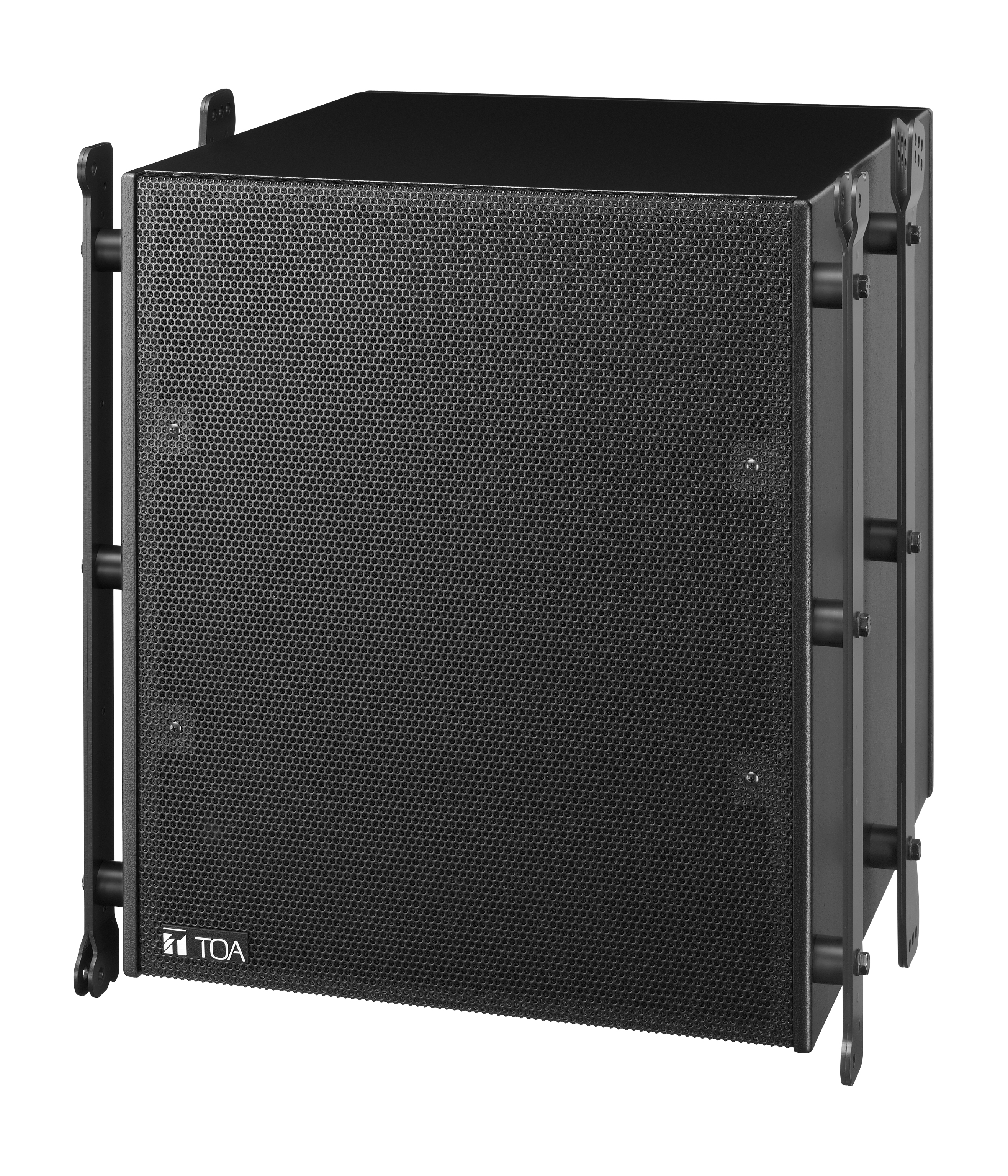

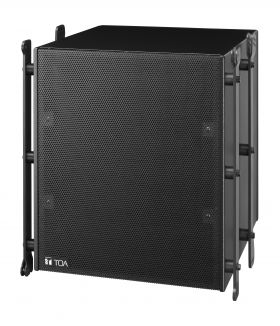

SR-C15B Line Array Sub Woofer

SR-C15B

The SR-C15B Sub-woofer system is designed to be used in conjunction with the SR-C8L or SR-C8S Line Array Speaker.



QTY: Add to Request for quote Request for quote
Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 450 W
Dispersion (1 to 4k Hz avg.) 360° Horizontal x 360° Vertical
Rated Impedance 8 Ω
Sensitivity 93 dB (1 W, 1 m)
Frequency Response 40 - 400 Hz (when driven with the optional DP-0206's recommended parameters*)
Crossover Frequency 125 Hz (when driven with the optional DP-0206's recommended parameters*)
Speaker Component 38 cm (15") cone-type
Input Connector M5 screw terminal, distance between barriers: 12.2 mm (0.48")
and Neutrik NL4MP × 2
Finish Enclosure: Plywood, black, urethane paint
Front grille: Punched steel plate, black, paint
Dimensions 526.6 (W) × 594.8 (H) × 550 (D) mm (20.73" × 23.42" × 21.65")
Weight 41 kg (90.39 lb)
Accessory M8 connection bolt …4
Option Rigging frame: SR-RF8
Digital processor: DP-0206*
Digital Mixer: D-901
Digital Mixing Processor Unit: D-2008SP
*DP-0206 is not available in some countries.
