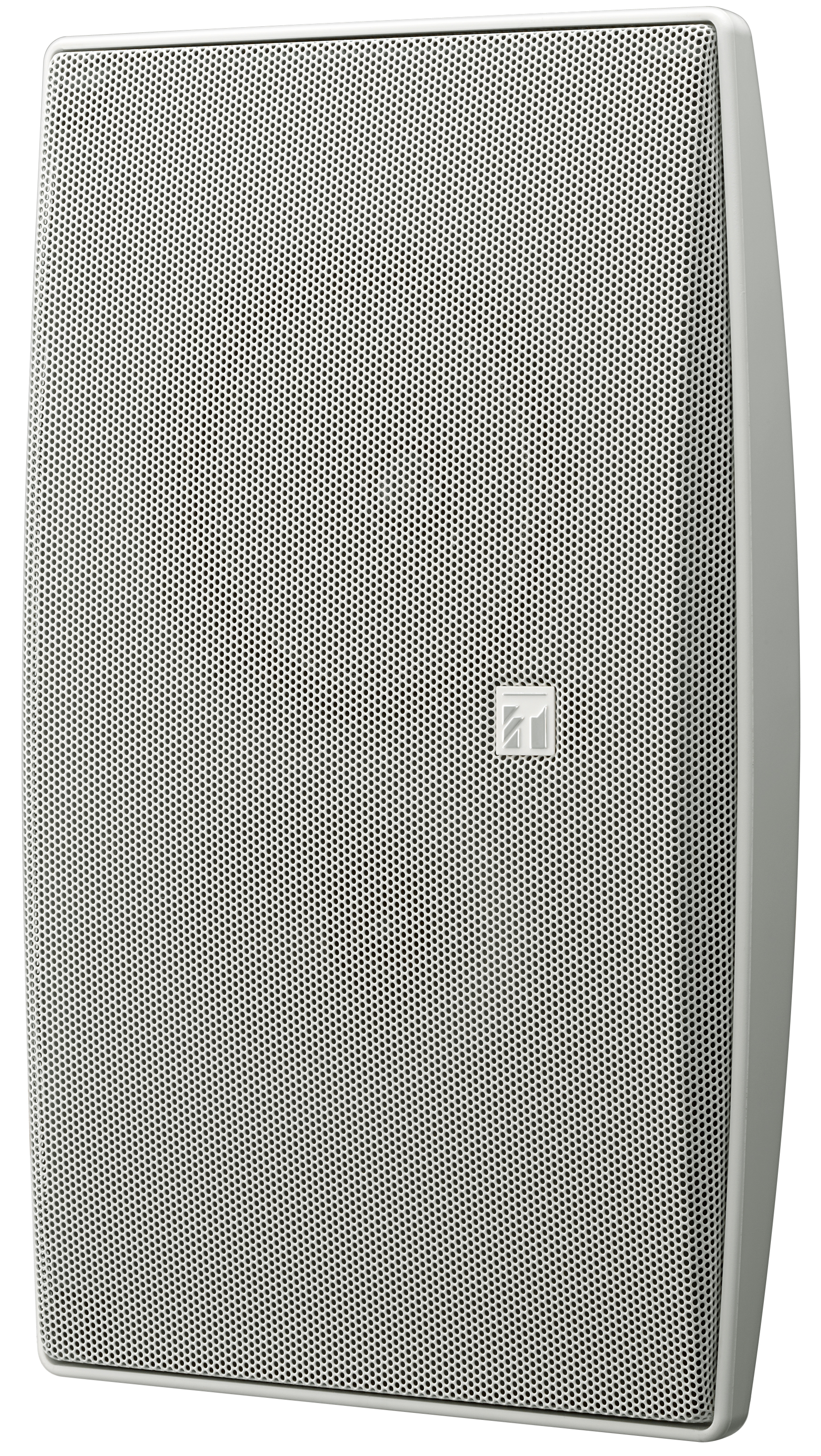

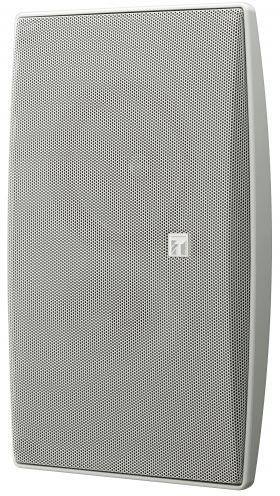

BS-1034 Wall Mount Speaker

BS-1034

The BS-1034 can be installed easily on the wall with help of the plug-in speaker receptacle.



QTY: Add to Request for quote Request for quote
Specification
The BS-1034 can be installed easily on the wall with help of the plug-in speaker receptacle.
Rated Input 10 W
Rated Impedance 100 V line: 1 kΩ (10 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Dispersion (1 to 4k Hz avg.) 160° Horizontal        170° Vertical
Sensitivity 90 dB (1 W, 1 m)
Frequency Response 120 - 20,000 Hz
Speaker Component Low frequency: 12 cm (5") cone-type, High frequency: Balanced dome-type
Input Connector M4 screw terminal, distance between barriers: 11 mm (0.43")
Finish Enclosure: HIPS resin (fire resistant grade UL94 V-0 or its equivalent),
off-white (RAL 9010 or equivalent color)
Net: Steel plate, off-white (RAL 9010 or equivalent color), paint
Dimensions 210 (W) × 330 (H) × 80 (D) mm (8.27" × 12.99" × 3.15")
Weight 1.4 kg (3.09 lb)
Accessory Speaker receptacle …1, Wall mounting screw …2
