SX-2000CI Control Input Unit

SX-2000CI

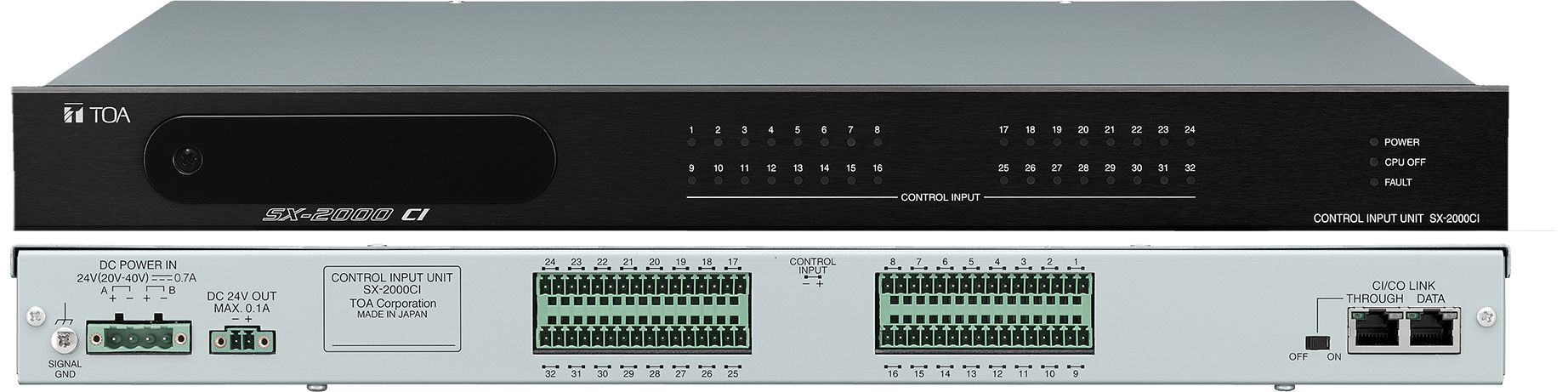

The SX-2000CI is a control input of the matrix system and can be mounted in an EIA equipment rack (1 U size). Multiple units can be decentralized in a whole system. It is equipped with 32 control input channels. Control input line failure can be detected by connecting resistors to its line. The indicators on the front panel monitor the control input line status. The SX-2000CI has a function to supply a stabilized 24 V DC. The SX-2000CI has two power inputs and can support a dual-redundant power supply system. By using a stand-alone mode, system can be configured with only the SX-2000CI, SX-2000CO Control output unit and the power supply unit, permitting the contact data of multiple channels to be transmitted to the remote locations with simple wiring.



QTY: Add to Request for quote Request for quote
Specification
When operating in matrix mode
Power Source Usable power supply unit: AD-011, AD-031B
24 V DC (operational range: 20 V - 40 V DC)
Two power inputs construction enables dual-redundant power supply.
Current Consumption 0.7 A or less (maximum value in the power operating range)
0.55 A or less (when operated on 24 V DC)
Indication Control input indicator (32), Power indicator, CPU OFF indicator, FAULT indicator
Control Input 32 inputs, no-voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA, photo coupler input, removable terminal block (16 pins)
Surveillance Section for The Control Input Lines Connection resistance to make the function inactive: 20 kΩ ±5 %
Connection resistance to make the function active: 10 kΩ ±5 %
Connector cable: Twisted pair cable (shielded type is recommended)
Maximum cable distance: 10 m (32.81 ft)
CI/CO Link
Input/Output Connector Input: 1 input, Output: 1 output
RJ45 Connector
Connection Cable Shielded Category 5 twisted pair cable (CAT5-STP)
(1 pair of data wire + 1 pair of control wire)
Maximum Cable Distance 800 m (874.89 yd)
24 V DC Output
Output Voltage 24 V DC ±10 % or less
Maximum Feeding Current 100 mA
Connector Removable terminal block (2 pins)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Panel: Aluminum, black, alumite
Case: Surface-treated steel plate
Dimensions 482 (W) × 44 (H) × 331.5 (D) mm (18.98 × 1.73" × 13.05")"
Weight 3.6 kg (7.94 lb)
Accessory Removable terminal plug (16 pins) …4, Removable terminal plug (4 pins) …1,
Removable terminal plug (2 pins) …1, Rack mounting screw …4
When operating in stand-alone mode
24 V DC Output
Output Voltage 24 V DC ±10 % or less
Maximum Feeding Current 100 mA
Connector Removable terminal block (2 pins)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 35 % to 80 %RH (no condensation)
Finish Panel: Aluminum, black, alumite
Case: Surface-treated steel plate
Dimensions 482 (W) × 44 (H) × 331.5 (D) mm (18.98 × 1.73" × 13.05")"
Weight 3.6 kg (7.94 lb)
Accessory Removable terminal plug (16 pins) …4, Removable terminal plug (4 pins) …1,
Removable terminal plug (2 pins) …1, Rack mounting screw …4
Option DC power supply panel: AD-011, AD-031B
Terminal unit: RM-200RJ
Conductor diameter of the main cable vs. maximum cable length (when the RM-200RJ is used)
